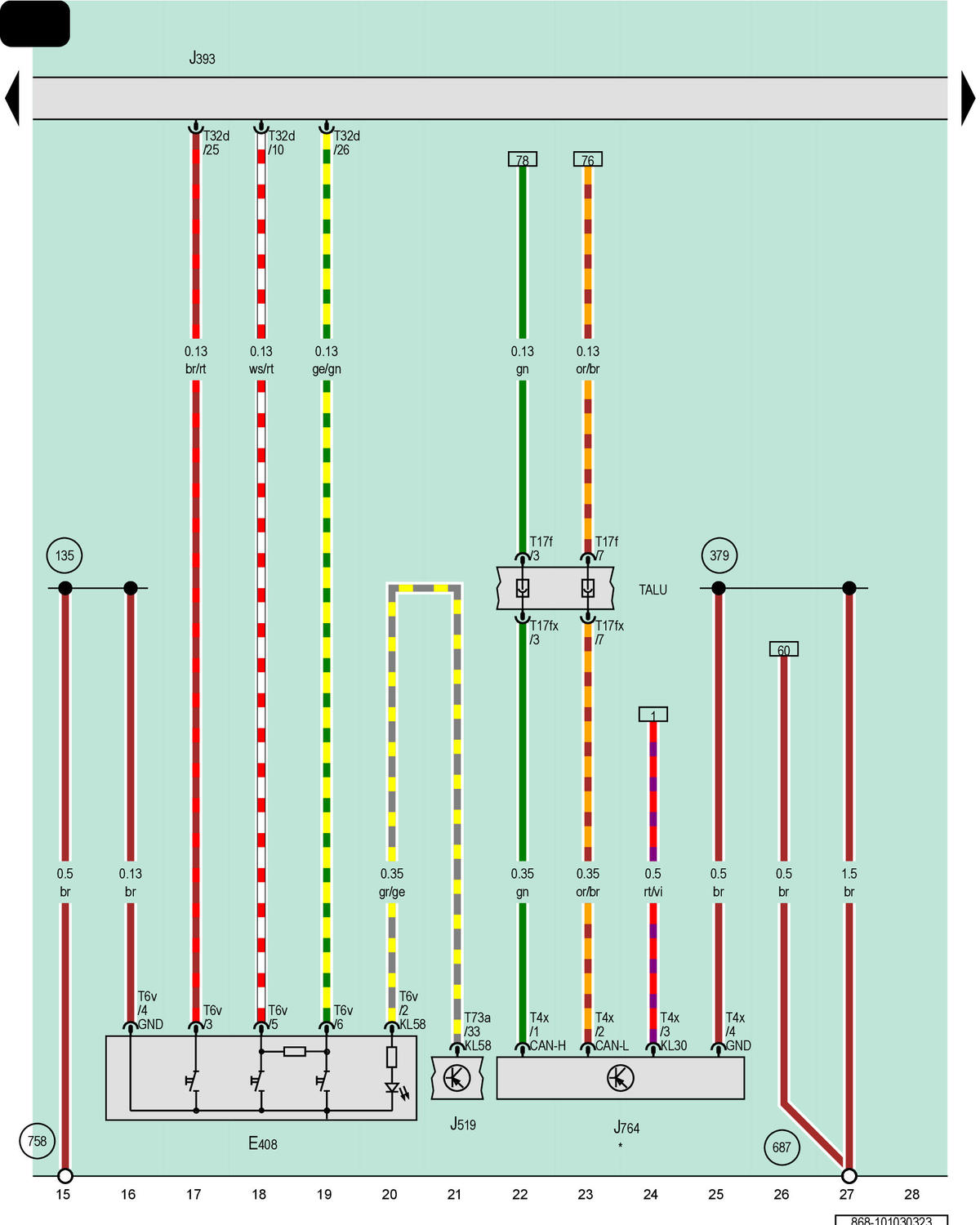

Access/Start Authorization Button, Comfort System Central Control Module, Vehicle Electrical System Control Module, Electronic Steering Column Lock Control Module
E408 Access/Start Authorization Button
J393 Comfort System Central Control Module
J519 Vehicle Electrical System Control Module
J764 Electronic Steering Column Lock Control Module
T4x 4-Pin Connector, Black
T6v 6-Pin Connector, Black
T17f 17-Pin Connector, Red
T17fx 17-Pin Connector, Red
T32d 32-Pin Connector, Blue
T73a 73-Pin Connector, Black
TALU Coupling Point on Left A-Pillar, Bottom
135 Ground Connection 2 (in Instrument Panel Wiring Harness)
379 Ground Connection 14 (in Main Wiring Harness)
687 Ground Connection 1 on Center Tunnel
758 Ground Connection 3 on Center Tunnel
* Country-Specific
