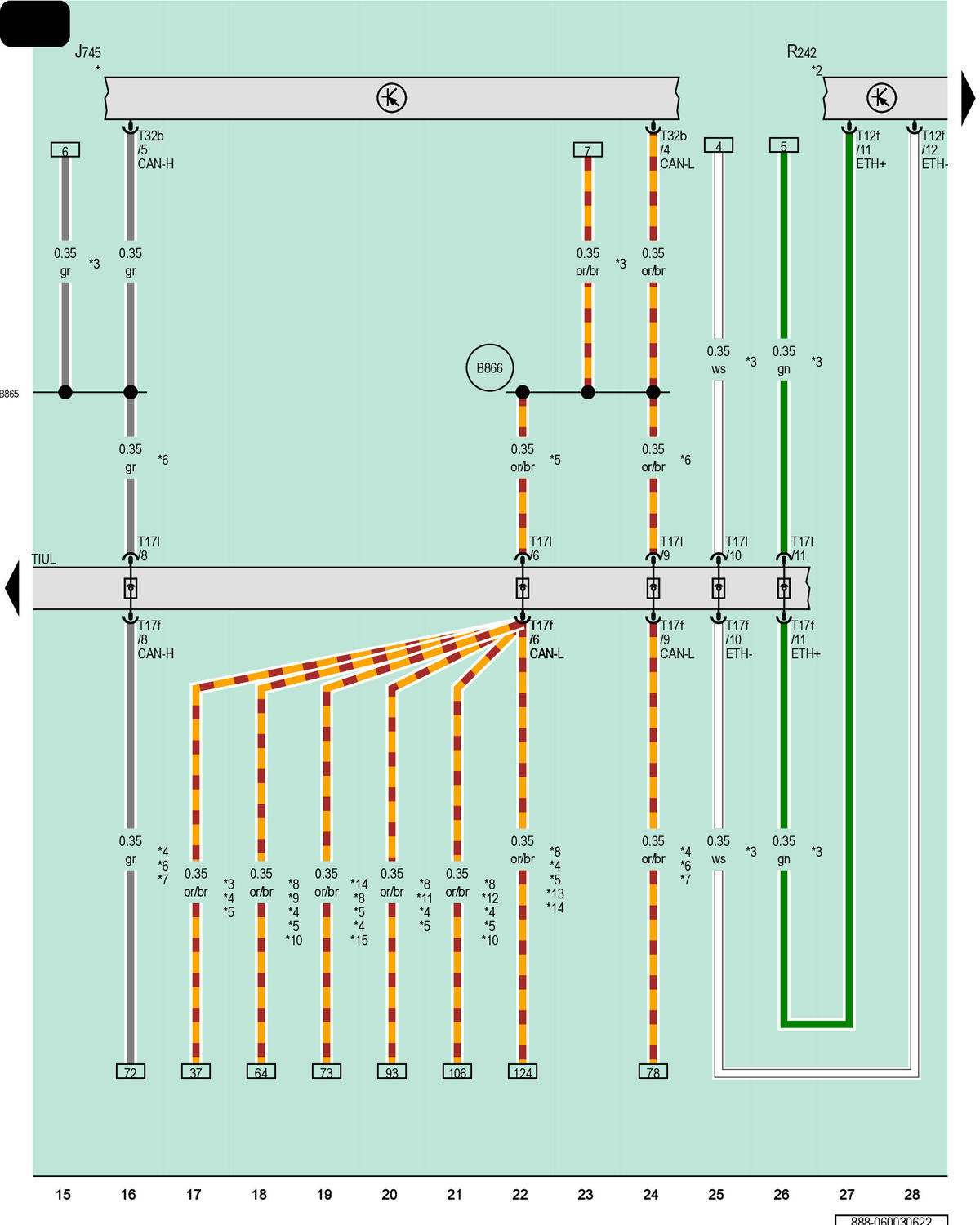

Cornering Lamp And Headlamp Range Control Module, Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

J745

Cornering Lamp and Headlamp Range Control Module

R242

Driver Assistance Systems Front Camera

T12f

12-Pin Connector, Brown

T17f

17-Pin Connector, Gray

T17l

17-Pin Connector, Gray

T32b

32-Pin Connector, Gray

TIUL

Coupling Point in Interior, Bottom Left

B865

Driver Assistance Systems CAN Bus High Connection 1 (in Main Wiring Harness)

B866

Driver Assistance Systems CAN Bus Low Connection 1 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for LED Headlamps

Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram

For Vehicles with Driver Assistance Systems Front Camera

For Vehicles with Headlamp Range Control Module

For Vehicles with Control Module for Adaptive Cruise Control

For Vehicles Without Control Module for Adaptive Cruise Control

CAN Bus Connection Wire

For Vehicles Without Driver Assistance Systems Front Camera

For Vehicles without Peripheral Camera

*10

For Vehicles Without Lane Change Assistance Control Module

*11

For Vehicles with Peripheral Camera

*12

For Vehicles with Rearview Camera System

*13

Sportback

*14

Sedan

*15

For Vehicles with Lane Change Assistance Control Module
