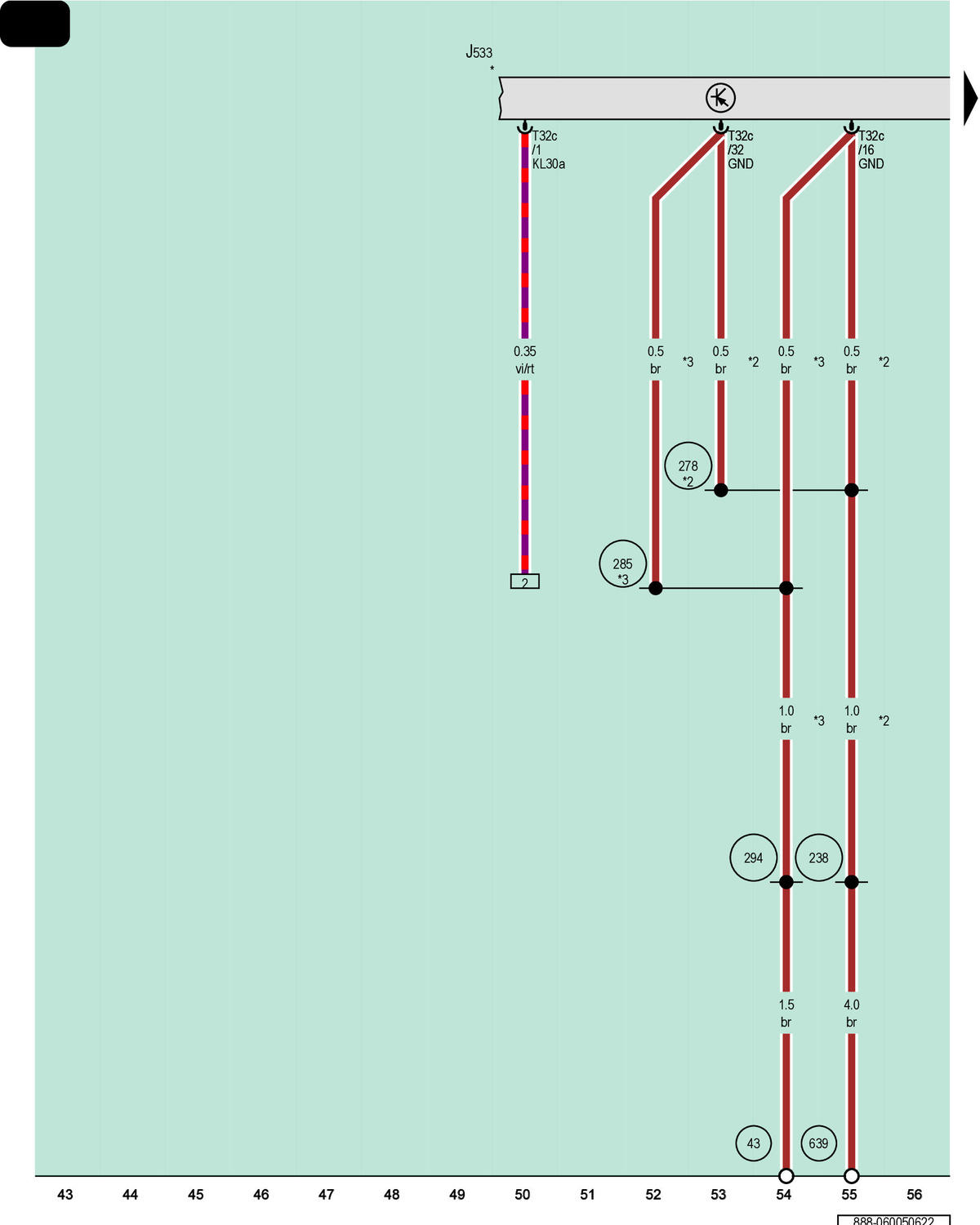

Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

T32c

32-Pin Connector, Black

43

Ground Connection on A-Pillar, Lower Right

238

Ground Connection 1 (in Interior Wiring Harness)

278

Ground Connection 4 (in Interior Wiring Harness)

285

Ground Connection 7 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

For LHD Vehicles

*3

For RHD Vehicles

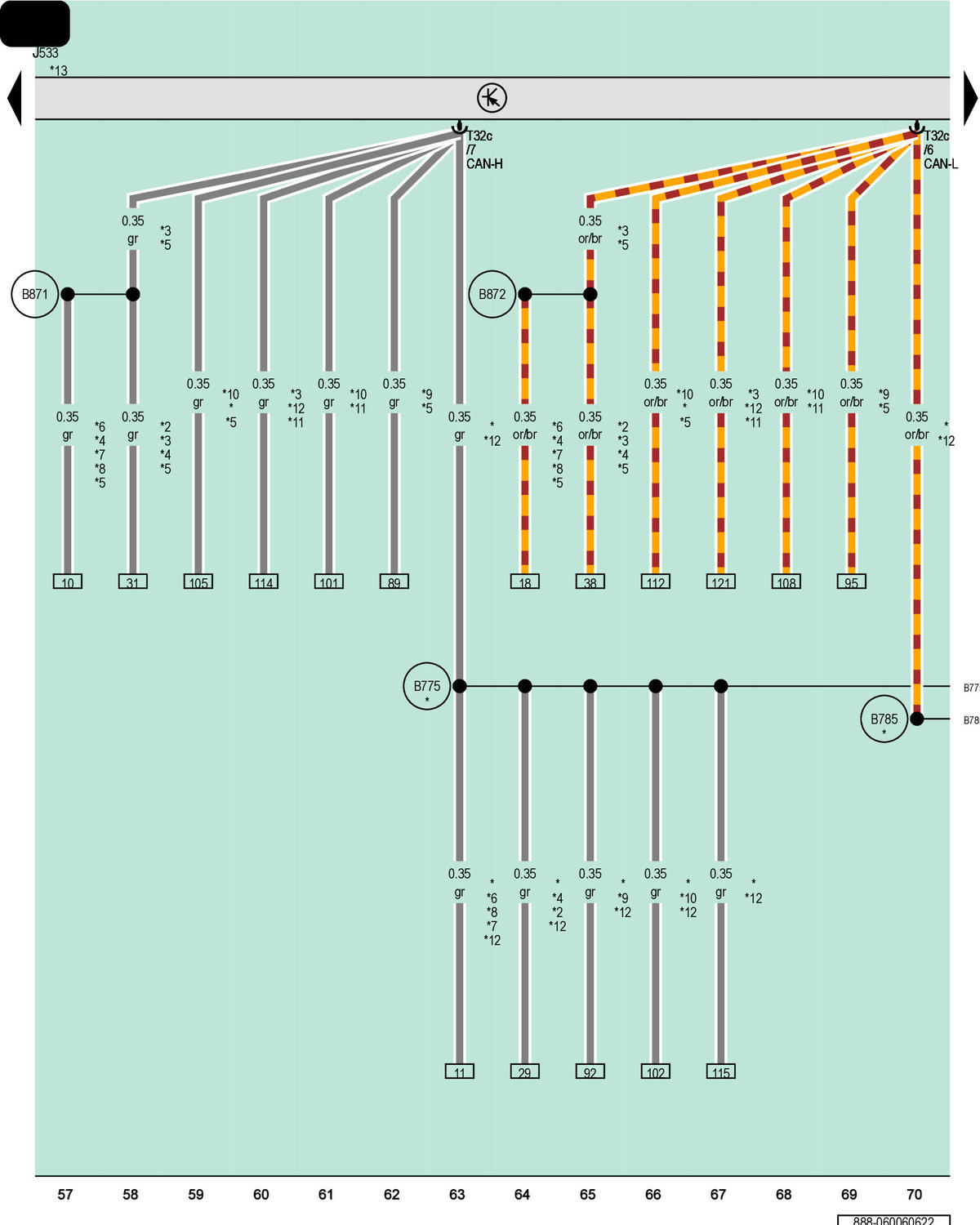

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

T32c

32-Pin Connector, Black

B775

Suspension Sensor CAN Bus High Connection 4 (in Main Wiring Harness)

B785

Suspension Sensor CAN Bus Low Connection 4 (in Main Wiring Harness)

B871

Driver Assistance Systems CAN Bus High Connection 4 (in Main Wiring Harness)

B872

Driver Assistance Systems CAN Bus Low Connection 4 (in Main Wiring Harness)

*

Sedan

*2

For Vehicles with Driver Assistance Systems Front Camera

*3

For Vehicles Without Rearview Camera System

*4

For Vehicles without Peripheral Camera

*5

For Vehicles Without Lane Change Assistance Control Module

*6

For Vehicles Without Driver Assistance Systems Front Camera

*7

For Vehicles with Headlamp Range Control Module

*8

For Vehicles with Control Module for Adaptive Cruise Control

*9

For Vehicles with Peripheral Camera

*10

For Vehicles with Rearview Camera System

*11

Sportback

*12

For Vehicles with Lane Change Assistance Control Module

*13

Refer to Applicable Wiring Diagram for Data Bus Networking

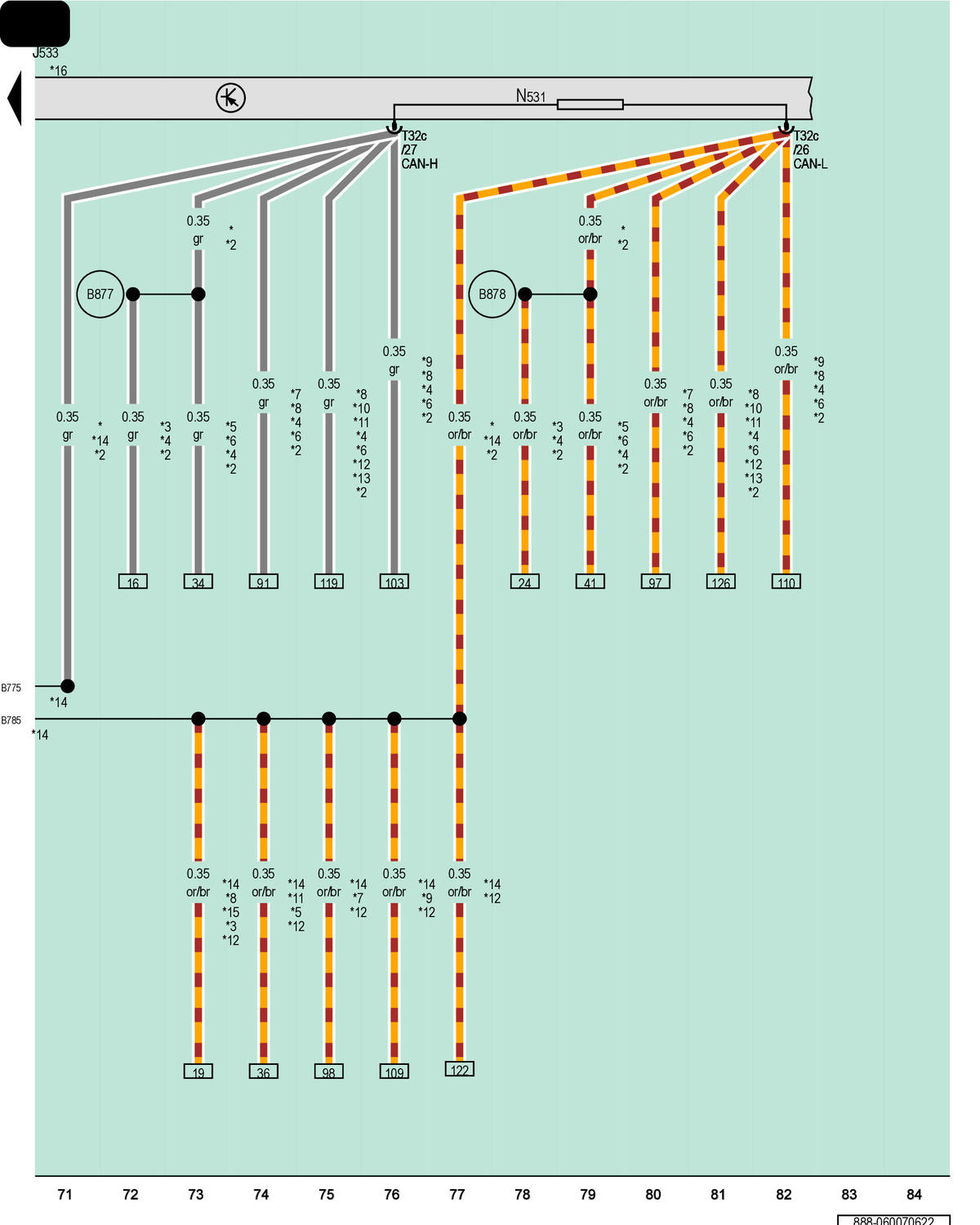

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

N531

CAN Bus Wires End Resistance

T32c

32-Pin Connector, Black

B775

Suspension Sensor CAN Bus High Connection 4 (in Main Wiring Harness)

B785

Suspension Sensor CAN Bus Low Connection 4 (in Main Wiring Harness)

B877

Driver Assistance Systems CAN Bus High Connection 7 (in Main Wiring Harness)

B878

Driver Assistance Systems CAN Bus Low Connection 7 (in Main Wiring Harness)

*

Depending on Equipment

*2

CAN Bus Connection Wire

*3

For Vehicles with Headlamp Range Control Module

*4

For Vehicles Without Control Module for Adaptive Cruise Control

*5

For Vehicles with Driver Assistance Systems Front Camera

*6

For Vehicles Without Headlamp Range Control Module

*7

For Vehicles with Peripheral Camera

*8

For Vehicles Without Driver Assistance Systems Front Camera

*9

For Vehicles with Rearview Camera System

*10

For Vehicles Without Rearview Camera System

*11

For Vehicles without Peripheral Camera

*12

For Vehicles with Lane Change Assistance Control Module

*13

Sportback

*14

Sedan

*15

For Vehicles with Control Module for Adaptive Cruise Control

*16

Refer to Applicable Wiring Diagram for Data Bus Networking
