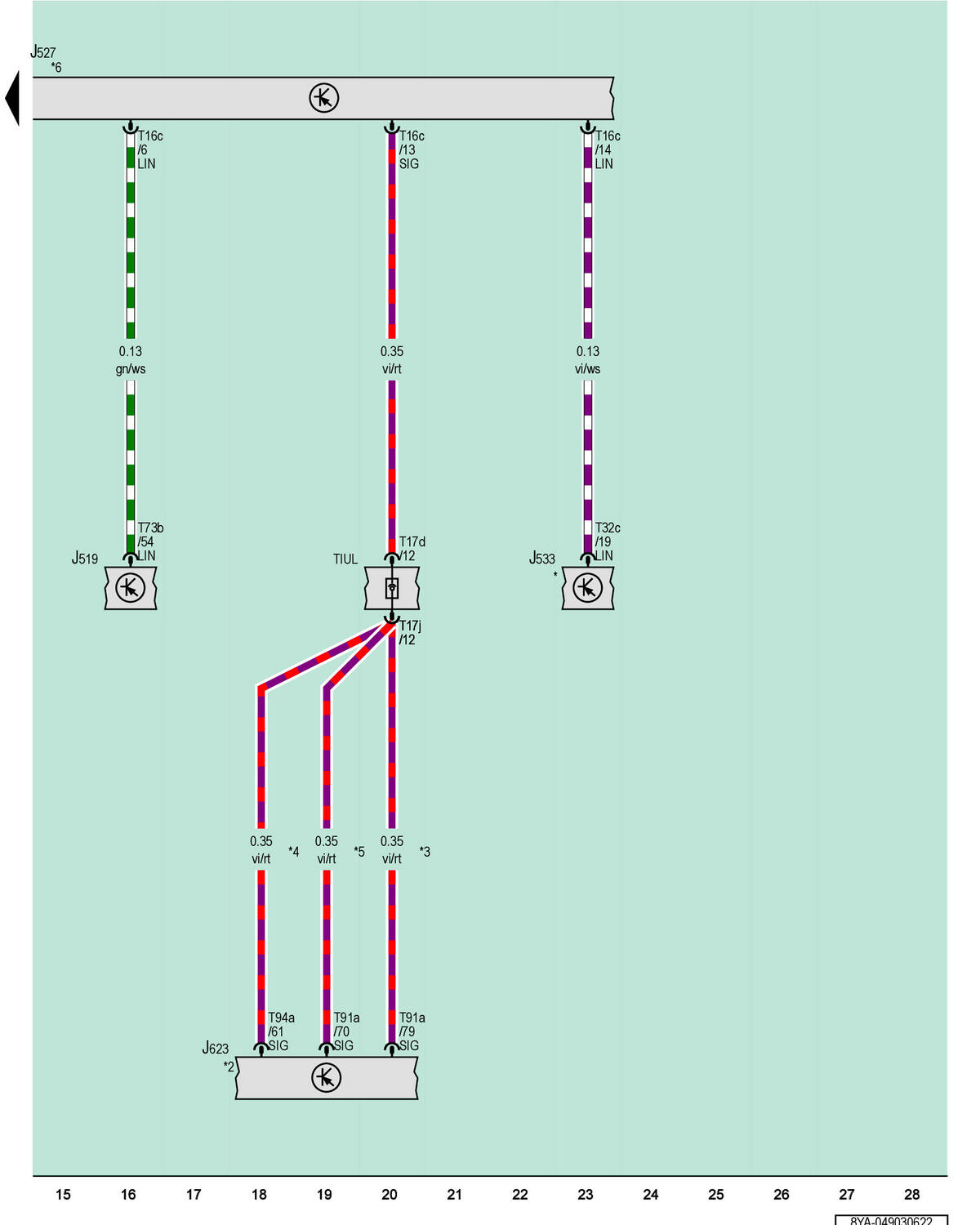

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
J519 Vehicle Electrical System Control Module
J527 Steering Column Electronics Control Module
J533 Data Bus on Board Diagnostic Interface
J623 Engine/Motor Control Module
T16c 16-Pin Connector, Black
T17d 17-Pin Connector, Red
T17j 17-Pin Connector, Red
T32c 32-Pin Connector, Black
T73b 73-Pin Connector, Black
T91a 91-Pin Connector, Black
T94a 94-Pin Connector, Black
TIUL Coupling Point in Interior, Bottom Left
* Refer to Applicable Wiring Diagram for Data Bus Networking
*2 Refer to Applicable Engine Wiring Diagram
*3 For Vehicles with Diesel Engine
*4 For Vehicles with 1.5L Gasoline Engine
*5 For Vehicles with 2.0L Gasoline Engine
*6 Refer to Applicable Steering Wheel Wiring Diagram
