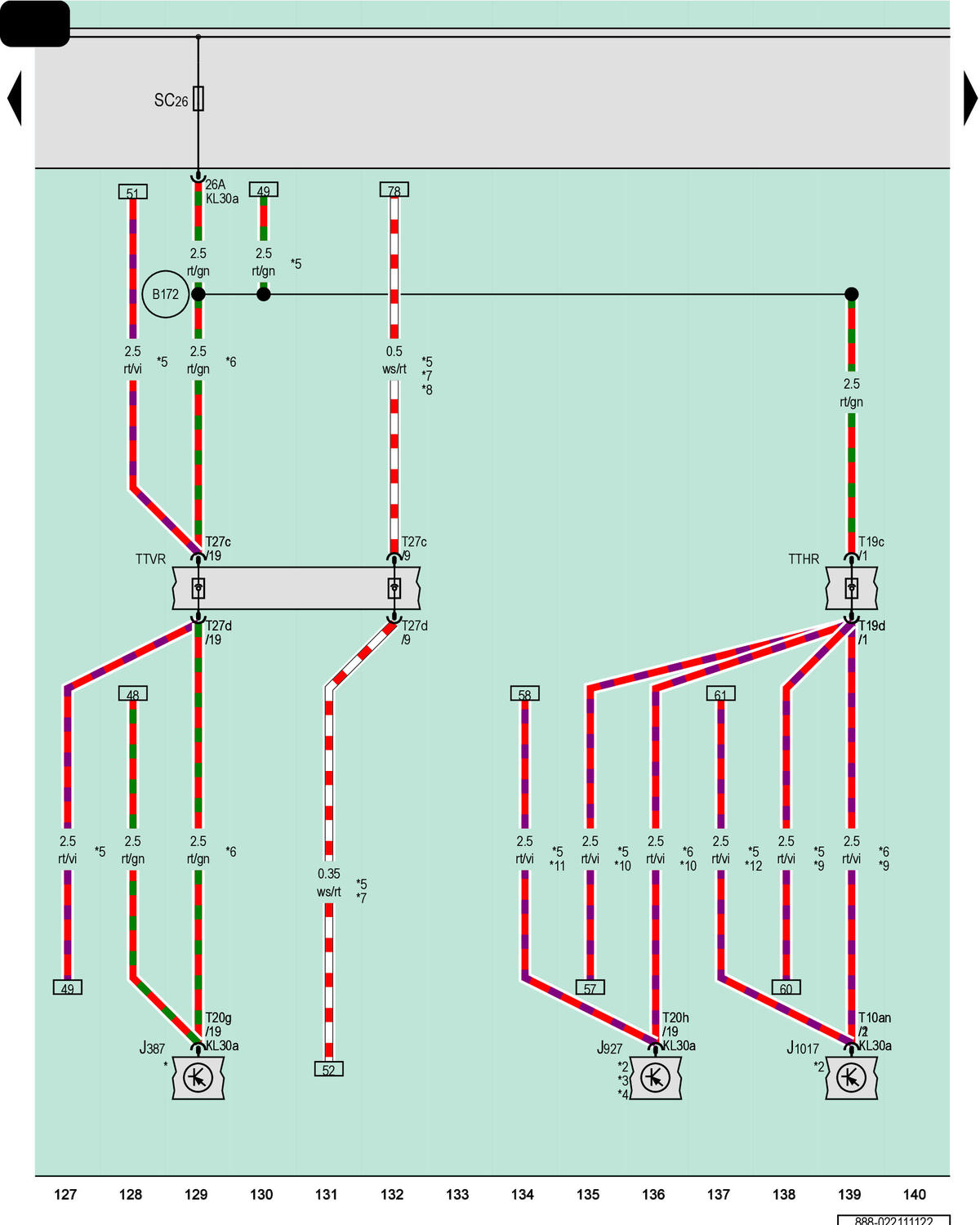

Front Passenger Door Control Module, Passenger Side Rear Door Control Module, Passenger Side Rear Window Regulator Motor Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J387

Front Passenger Door Control Module

J927

Passenger Side Rear Door Control Module

J1017

Passenger Side Rear Window Regulator Motor Control Module

SC

Fuse Panel C

SC26

Fuse 26 (On Fuse Panel C)

T10an

10-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T20g

20-Pin Connector, White

T20h

20-Pin Connector, White

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTVR

Right Front Door Coupling Point

B172

Positive Connection 4 (30) (in Interior Wiring Harness)

*

Refer to Applicable Front Passenger Door Wiring Diagram

*2

Refer to Applicable Convenience System Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Interior Lamps

*4

Refer to Applicable Sound System Wiring Diagram

*5

For RHD Vehicles

*6

For LHD Vehicles

*7

For Vehicles with Near Field Communication

*8

Diameter Depends on Equipment

*9

For Vehicles Without Right Rear Door Control Module

*10

For Vehicles with Right Rear Door Control Module

*11

For Vehicles with Left Rear Door Control Module

*12

For Vehicles Without Left Rear Door Control Module
