Fuel Tank Leak Detection Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

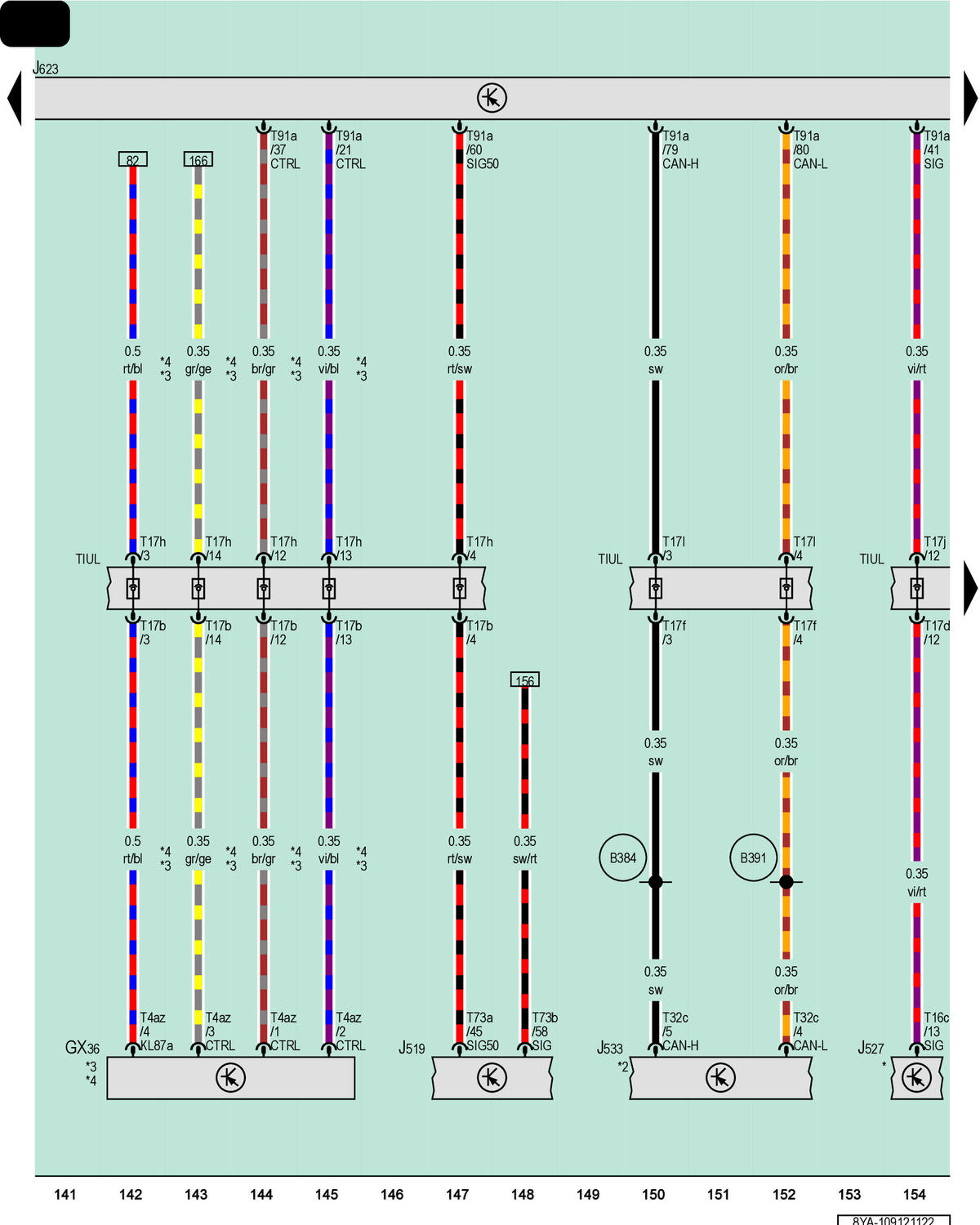

GWW8YA-109121122Courtesy of AUDI OF AMERICA, LLC

GX36  Fuel Tank Leak Detection Module

J519  Vehicle Electrical System Control Module

J527  Steering Column Electronics Control Module

J533  Data Bus on Board Diagnostic Interface

J623  Engine/Motor Control Module

T4az  4-Pin Connector, Black

T16c  16-Pin Connector, Black

T17b  17-Pin Connector, Black

T17d  17-Pin Connector, Red

T17f  17-Pin Connector, Gray

T17h  17-Pin Connector, Black

T17j  17-Pin Connector, Red

T17l  17-Pin Connector, Gray

T32c  32-Pin Connector, Black

T73a  73-Pin Connector, Black

T73b  73-Pin Connector, Black

T91a  91-Pin Connector, Black

TIUL  Coupling Point in Interior, Bottom Left

B384  Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B391  Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

Refer to Applicable Steering Column Electronics Wiring Diagram

*2  Refer to the Applicable Powertrain CAN Bus Network Data Bus Wiring Diagram

*3  From June 2021

*4  For LEV3/Tier 3 70 Emissions Standard
