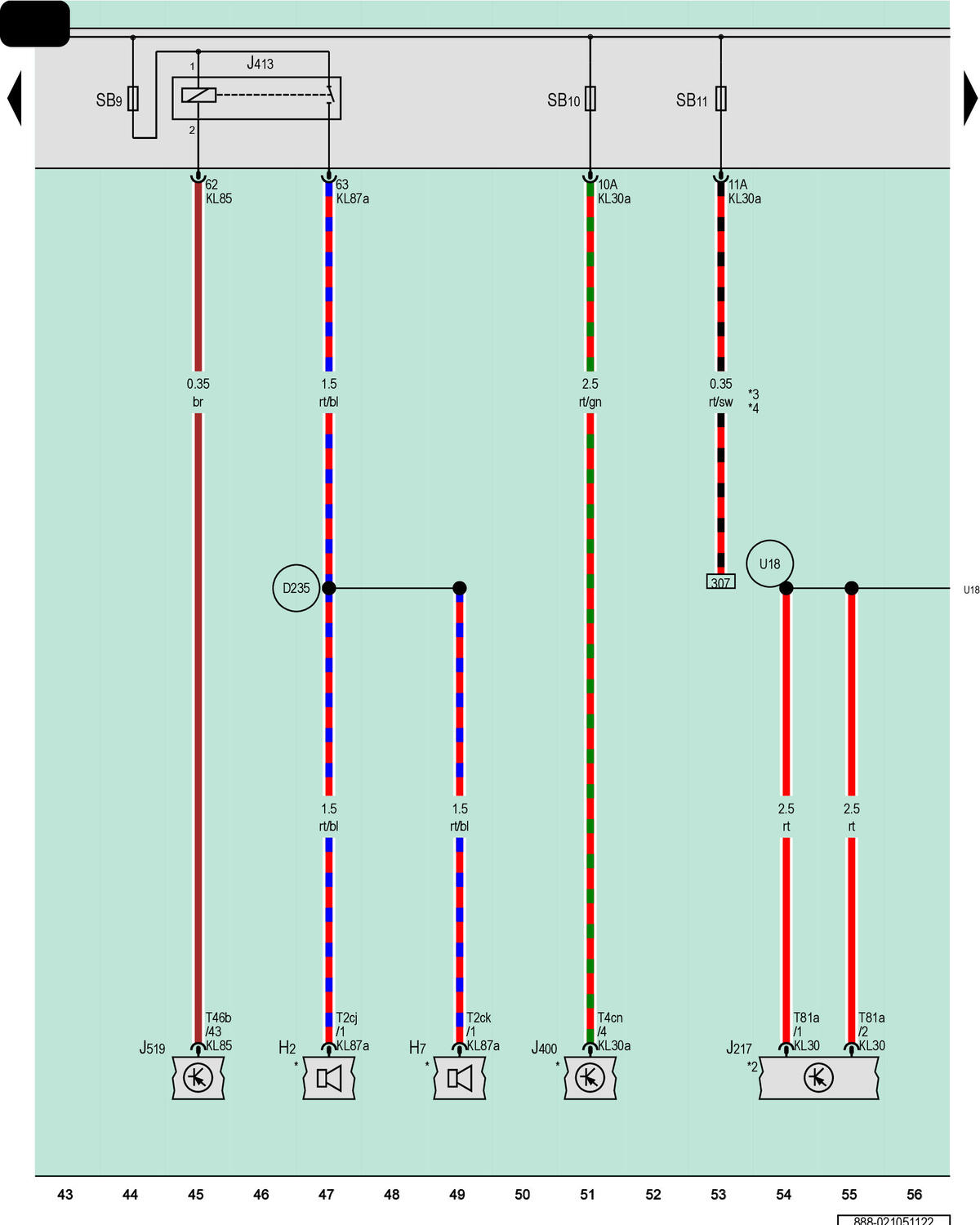

High Tone Horn, Low Tone Horn, Transmission Control Module, Wiper Motor Control Module, Vehicle Electrical System Control Module, Fuse Panel B

H2

High Tone Horn

H7

Low Tone Horn

J217

Transmission Control Module

J400

Wiper Motor Control Module

J413

Horn Relay

J519

Vehicle Electrical System Control Module

SB

Fuse Panel B

SB9

Fuse 9 (On Fuse Panel B)

SB10

Fuse 10 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

T2cj

2-Pin Connector, Black

T2ck

2-Pin Connector, Black

T4cn

4-Pin Connector, Black

T46b

46-Pin Connector, Black

T81a

81-Pin Connector, Black

D235

Connection (Dual Tone Horn) (in Engine/Motor Compartment Wiring Harness)

U18

Positive Connection (30a) (in Automatic Transmission Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Automatic Transmission

*3

For Vehicles with Hybrid Drive

*4

From November 2021
