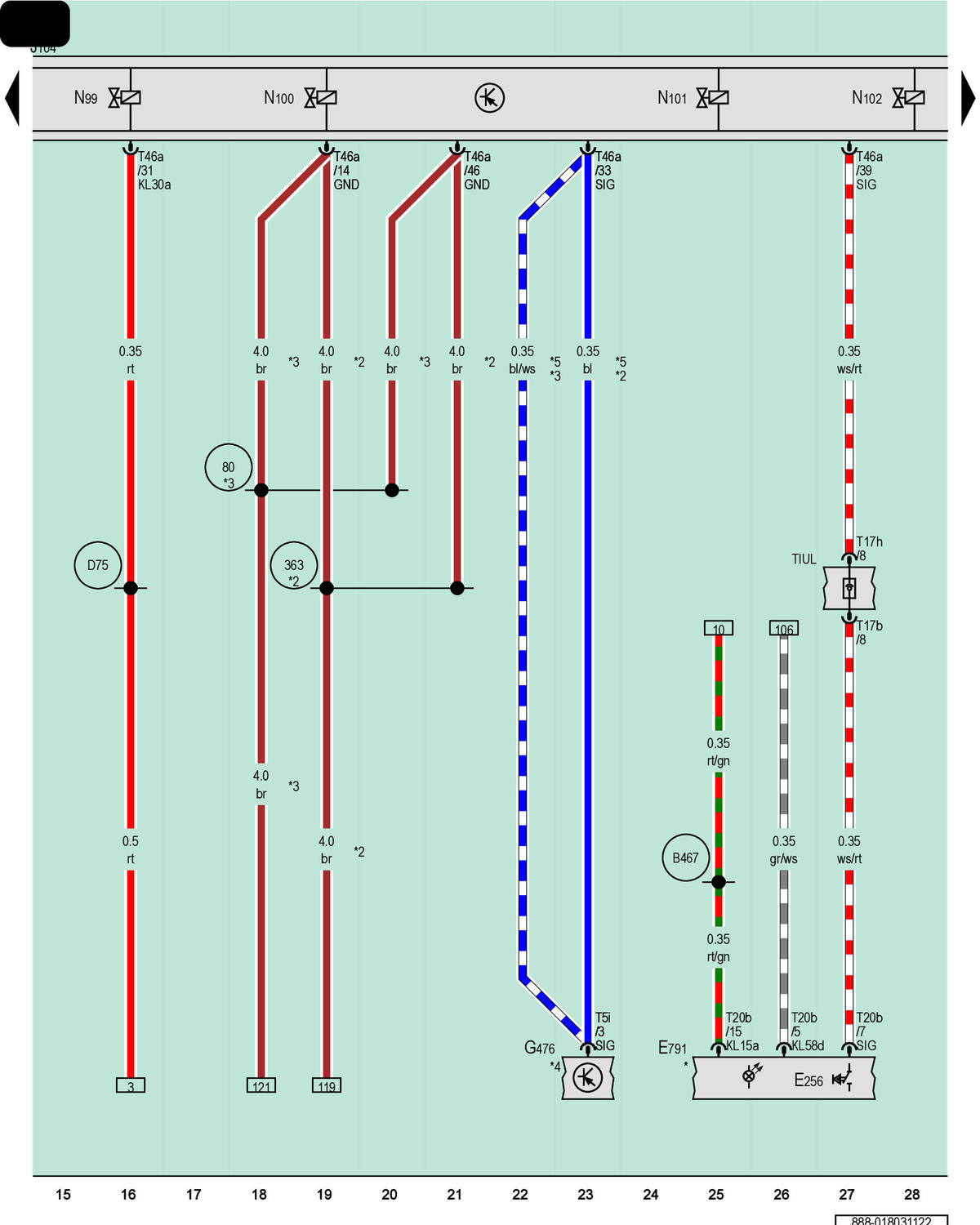

Control Unit 1 For Driving And Convenience Functions, Clutch Position Sensor, Abs Control Module

Courtesy of AUDI OF AMERICA, LLC

E256

ASR/ESP Button

E791

Control Unit 1 for Driving and Convenience Functions

G476

Clutch Position Sensor

J104

ABS Control Module

N99

Right Front ABS Inlet Valve

N100

Right Front ABS Outlet Valve

N101

Left Front ABS Inlet Valve

N102

Left Front ABS Outlet Valve

T5i

5-Pin Connector, Black

T17b

17-Pin Connector, Black

T17h

17-Pin Connector, Black

T20b

20-Pin Connector, Black

T46a

46-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

80

Ground Connection 1 (in Instrument Cluster Wiring Harness)

363

Ground Connection 8 (in Engine/Motor Compartment Wiring Harness)

B467

Connection 3 (in Main Wiring Harness)

D75

Positive Connection 2 (30) (in Engine/Motor Compartment Wiring Harness)

*1

Refer to the Applicable Wiring Diagram for the Switch and Center Console

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Refer to Applicable Engine Wiring Diagram

*5

For Vehicles with a Manual Transmission
