Overview - Driver Side Airbag

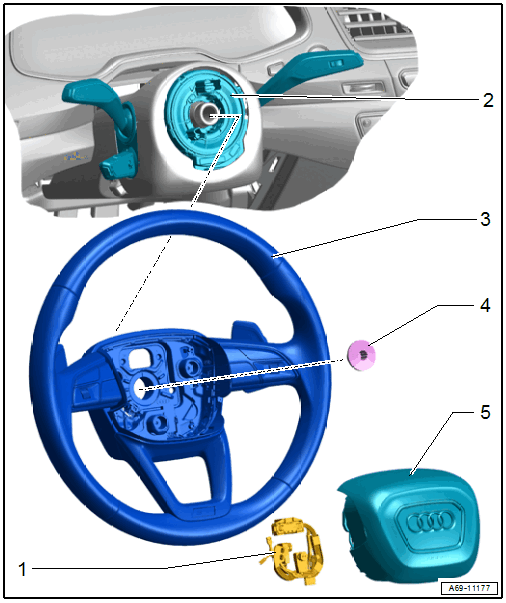

Fig 1: Exploded View Of Driver Side Airbag

Courtesy of AUDI

Wiring Harness
- For the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Refer to AIRBAG CONNECTOR, REPLACING
Steering Column Electronics Control Module -J527-
- With Spiral Spring -F350-
- Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
Steering Wheel
- Refer to Overview - Steering Wheel .
Bolt
- Tightening specification. Refer to OVERVIEW - STEERING WHEEL .
Driver Side Airbag
- With the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING
