Solenoid Valve Block, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi SQ8, 2022 Audi RS Q8, 2022 Audi Q8, 2021 Audi SQ8, and 2021 Audi RS Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Vent the system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .
-- Switch off the ignition.
-- Remove the nuts -arrows-, and remove the cover -1- for the air supply unit.

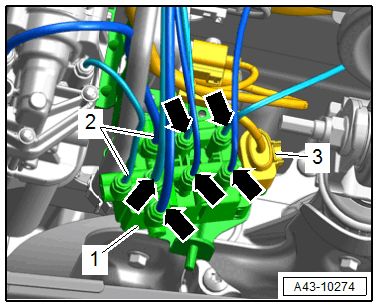

-- Disconnect the connector -3- from the solenoid valve -1-.
-- Remove the air lines -2- and -arrows- and protect them from dirt.

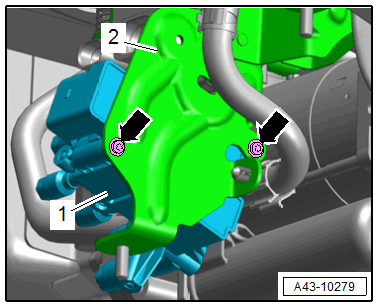

-- Remove the bolts -arrows- and the solenoid valve -1- from the bracket -2-.
