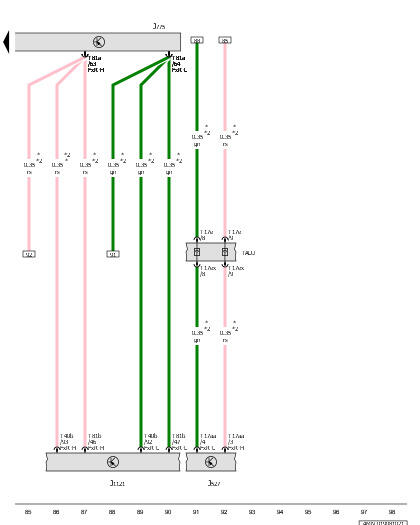

Steering Column Electronics Control Module, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI

J527

Steering Column Electronics Control Module

J775

Drivetrain Control Module

J1121

Driver Assistance Systems Control Module

T17aa

17-Pin Connector, Yellow

T17e

17-Pin Connector, Blue

T17ex

17-Pin Connector, Blue

T40b

40-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

Data Bus Wire (Flexray Bus)

*2

Depending on Equipment
