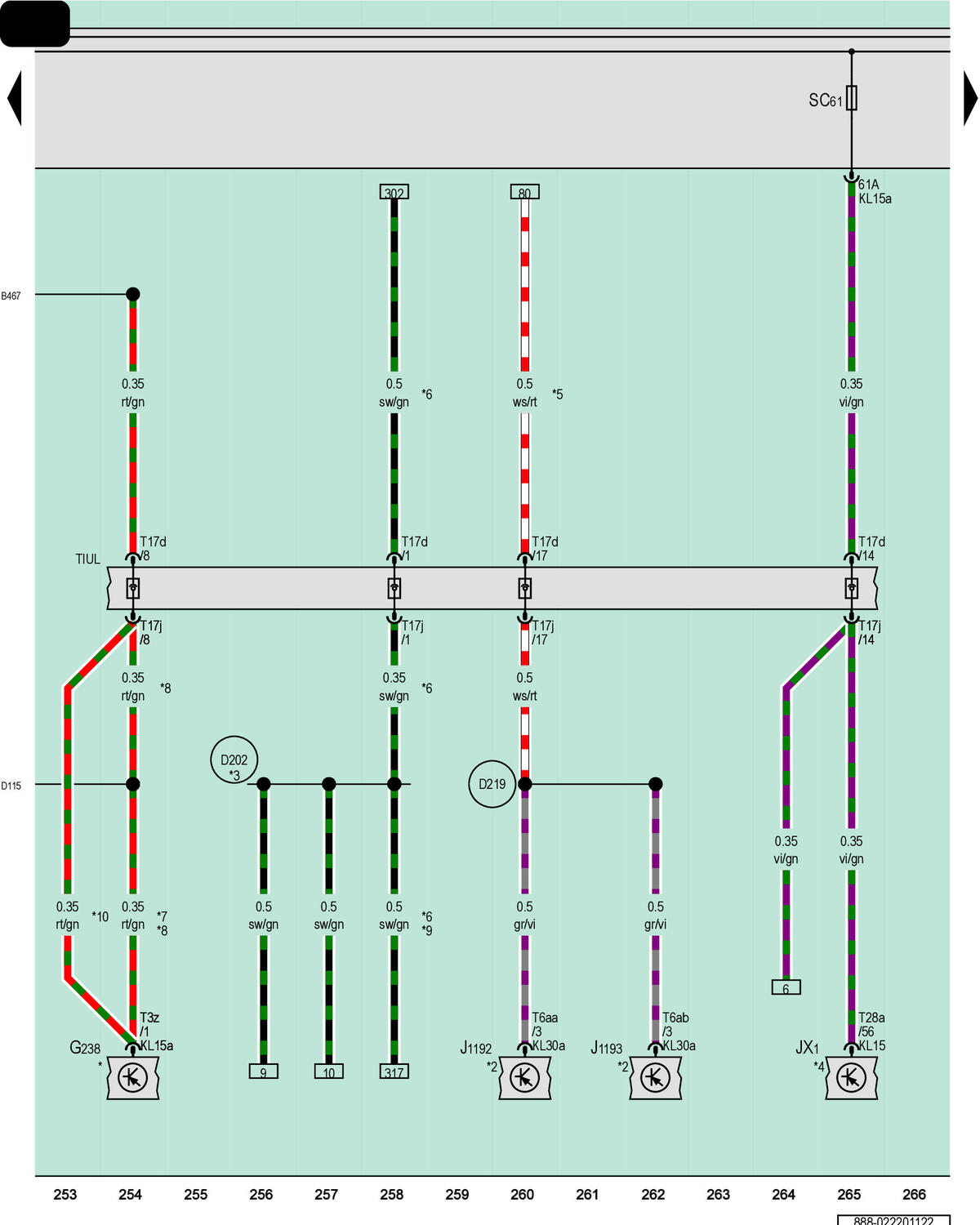

Air Quality Sensor, Electric Drive Power And Control Electronics, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Fuse Panel C
G238
Air Quality Sensor
JX1
Electric Drive Power and Control Electronics
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
SC
Fuse Panel C
SC61
Fuse 61 (On Fuse Panel C)
T3z
3-Pin Connector, Brown
T6aa
6-Pin Connector, Black
T6ab
6-Pin Connector, Black
T17d
17-Pin Connector, Red
T17j
17-Pin Connector, Red
T28a
28-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
B467
Connection 3 (in Main Wiring Harness)
D115
Connection 13 (in Engine/Motor Compartment Wiring Harness)
D202
Connection 6 (87A) (in Engine/Motor Compartment Wiring Harness)
D219
Positive Connection 7 (30a) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*4
Refer to Applicable High-Voltage System Wiring Diagram
*5
Diameter Depends on Equipment
*6
For Vehicles with Diesel Engine
*7
For Vehicles with Climatronic
*8
For Vehicles Without Hybrid Drive
*9
Different Wire Color Possible
*10
For Vehicles with Hybrid Drive
