Motor Support, Removing And Installing: Installing

Install in reverse order of removal and note the following:

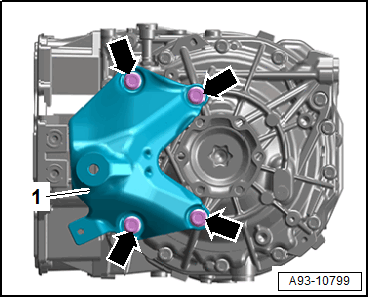

-- Use the bolts -arrows- to install the motor support -1- hand-tight (2 Nm) on the motor.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows-.

Condition

• Always replace a removed clip for noise insulation on the motor.
