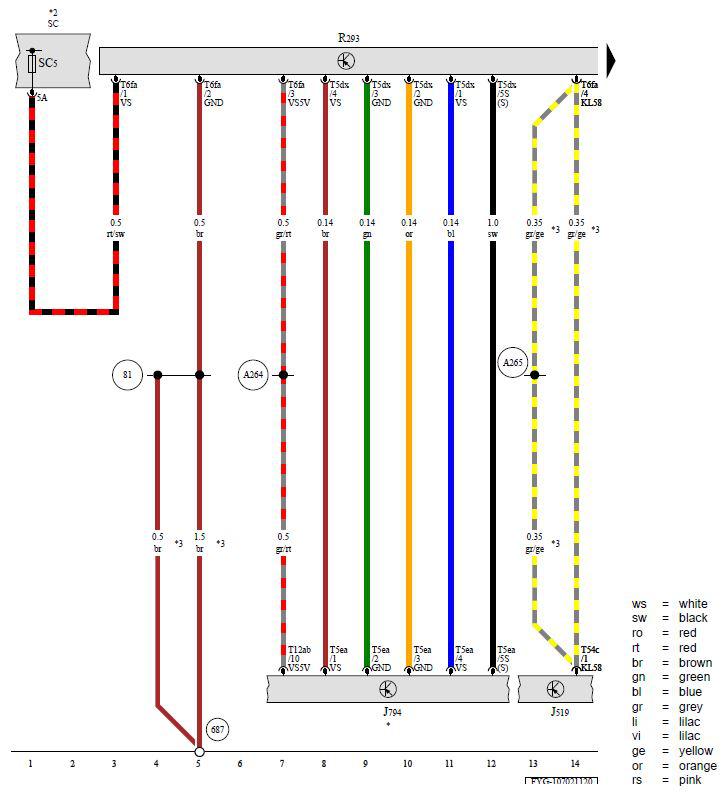

Vehicle Electrical System Control Module, Information Electronics Control Module 1, USB Distributor, Fuse Panel C
J519 - Vehicle Electrical System Control Module
J794 - Information Electronics Control Module 1
R293 - USB Distributor
SC - Fuse Panel C
SC5 - Fuse 5 (On Fuse Panel C)
T5dx - 5-Pin Connector, Green
T5ea - 5-Pin Connector, Brown
T6fa - 6-Pin Connector, Black
T12ab - 12-Pin Connector, Green
T54c - 54-Pin Connector, Black
81 - Ground Connection 1 (in Instrument Panel Wiring Harness)
687 - Ground Connection 1 on Center Tunnel
A264 - Connection 1 (5V) (in Instrument Panel Wiring Harness)
A265 - Connection 58s (in Instrument Panel Wiring Harness) 2
* - Refer to Applicable MMI (Information Electronics) Wiring Diagram
*2 - Refer to Applicable Wiring Diagram for Fuse Positions
*3 - Depending on Equipment
