Overview - Assembly Mounts

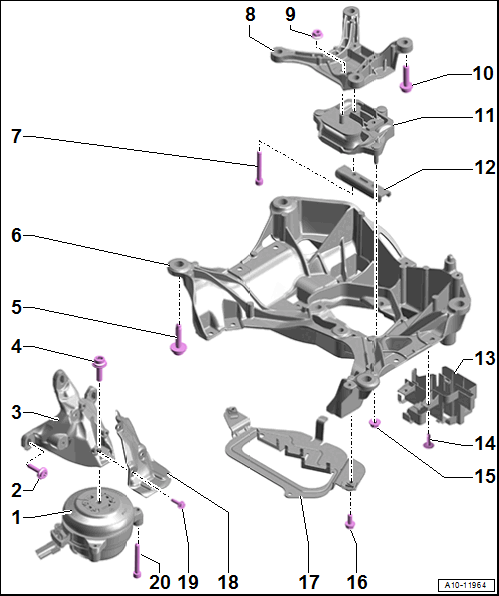

Fig 1: Exploded View Of Assembly Mounts
GWWA10-11964Courtesy of AUDI OF AMERICA, LLC
  1. Side Transmission Mount
    • Removing and installing. Refer to appropriate Engine Assembly article, Assembly Mounts; Transmission Mount, Removing and Installing .
  2. Bolt
    • 20 Nm
  3. Side transmission support
    • Removing and installing. Refer to appropriate Engine Assembly article, Assembly Mounts; Transmission Mount, Removing and Installing .
  4. Bolt
    • 55 Nm
  5. Bolt
    • 55 Nm
  6. Tunnel Crossmember
  7. Bolt
    • 20 Nm +90°
    • Always replace
    • Only remove if the transmission mount must be separated from the transmission support
  8. Rear Transmission Support
    • Removing and installing. Refer to appropriate Engine Assembly article, Assembly Mounts; Transmission Mount, Removing and Installing .
  9. Nut
    • 20 Nm
    • Only remove if the transmission mount must be separated from the transmission support
  10. Bolt
    • 40 Nm
  11. Rear Transmission Mount
    • Removing and installing. Refer to appropriate Engine Assembly article, Assembly Mounts; Transmission Mount, Removing and Installing .
  12. Stop
    • For the transmission mount
  13. Bracket
    • For the NOx Sensor Control Module -J583- /Particulate Sensor -G784-
  14. Bolt
    • Tightening specifications. Refer to appropriate Engine Assembly article, Assembly Mounts; Overview - Assembly Mounts
  15. Nut
    • 20 Nm
  16. Bolt
    • Tightening specifications. Refer to appropriate Engine Assembly article, Assembly Mounts; Overview - Assembly Mounts
  17. Bracket
    • For connectors
  18. Heat Shield
  19. Bolt
    • 10 Nm
  20. Bolt
    • 20 Nm
