Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN REAR SECTION OF VEHICLE .

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

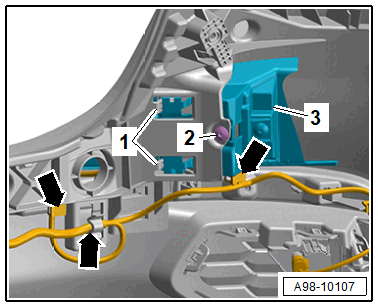

-- Free up the wiring harness -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Remove the shield -3- from the guides -1- from the bumper cover.

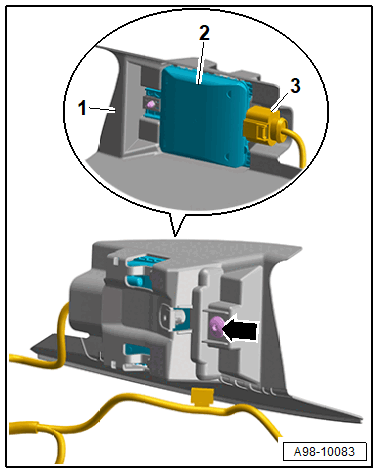

-- Remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the control module -2- from the guides of the shield -1-.

-- Disconnect the connector -3-.
