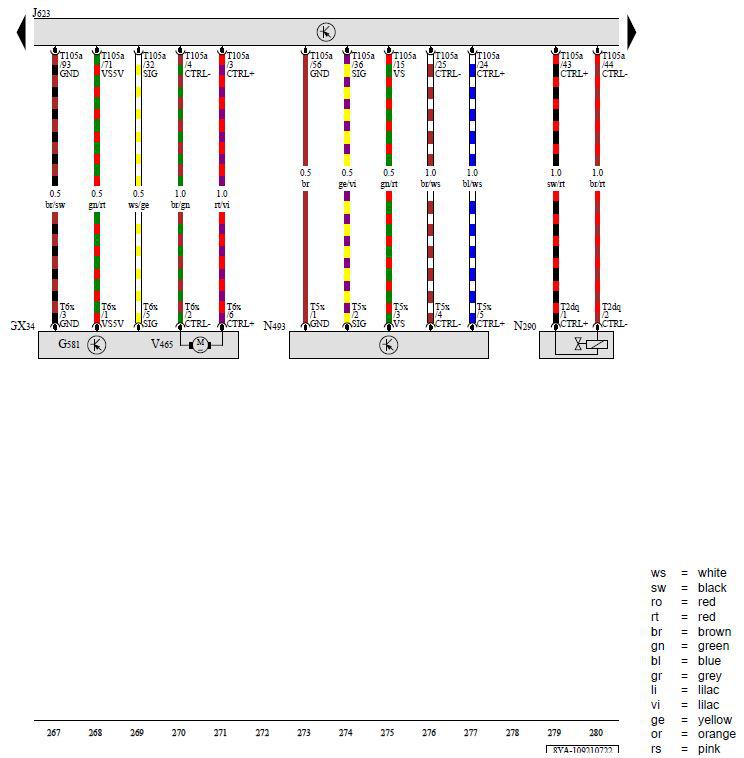

Charge Air Pressure Control Module, Engine/Motor Control Module, Fuel Metering Valve, Engine Temperature Control Actuator

Courtesy of AUDI OF AMERICA, LLC

GX34 -  Charge Air Pressure Control Module

G581 -  Charge Air Pressure Actuator Position Sensor

J623 -  Engine/Motor Control Module

N290 -  Fuel Metering Valve

N493 -  Engine Temperature Control Actuator

T2dq -  2-Pin Connector, Black

T5x -  5-Pin Connector, Black

T6x -  6-Pin Connector, Black

T105a -  105-Pin Connector, Black

V465 -  Charge Air Pressure Actuator
