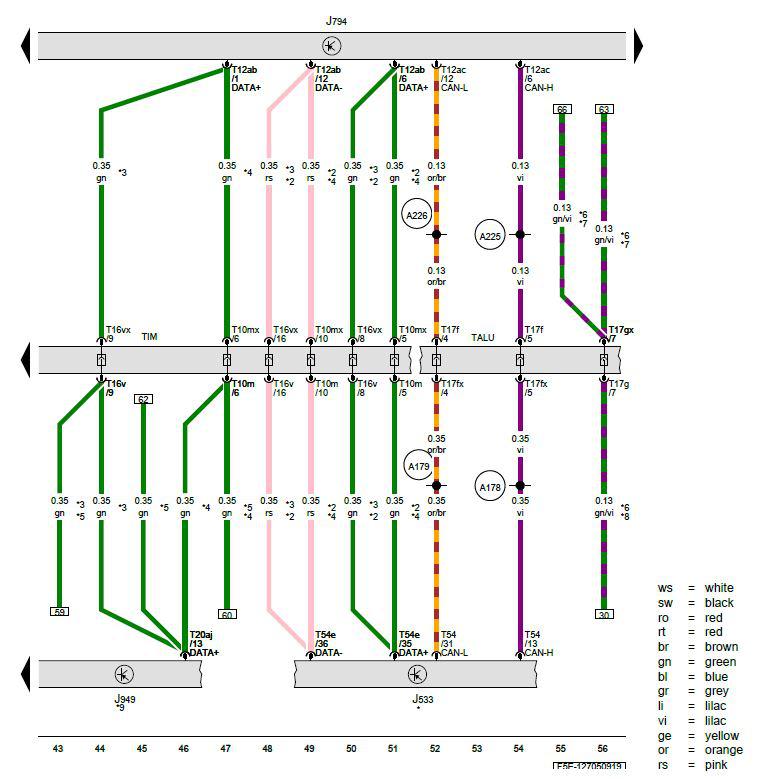

Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit
J533 - Data Bus on Board Diagnostic Interface
J794 - Information Electronics Control Module 1
J949 - Control Module for Emergency Call Module and Communication Unit
T10m - 10-Pin Connector, Black
T10mx - 10-Pin Connector, Black
T12ab - 12-Pin Connector, Green
T12ac - 12-Pin Connector, Gray
T16v - 16-Pin Connector, Brown
T16vx - 16-Pin Connector, Brown
T17f - 17-Pin Connector, Red
T17fx - 17-Pin Connector, Red
T17g - 17-Pin Connector, Blue
T17gx - 17-Pin Connector, Blue
T20aj - 20-Pin Connector, Naturally Cloudy
T54 - 54-Pin Connector, Black
T54e - 54-Pin Connector, Gray
TALU - Coupling Point on Left A-Pillar, Bottom
TIM - Coupling Point in Interior, Center
A178 - Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179 - Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225 - Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226 - Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
* - Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
*2 - Ethernet Connection
*3 - From December 2019
*4 - Through November 2019
*5 - For Vehicles with Bang & Olufsen Sound System
*6 - Refer to Applicable Wiring Diagram for Infotainment Most Bus
*7 - Depending on Equipment
*8 - For Vehicles with TV Tuner
*9 - Refer to Applicable Communication Wiring Diagram
