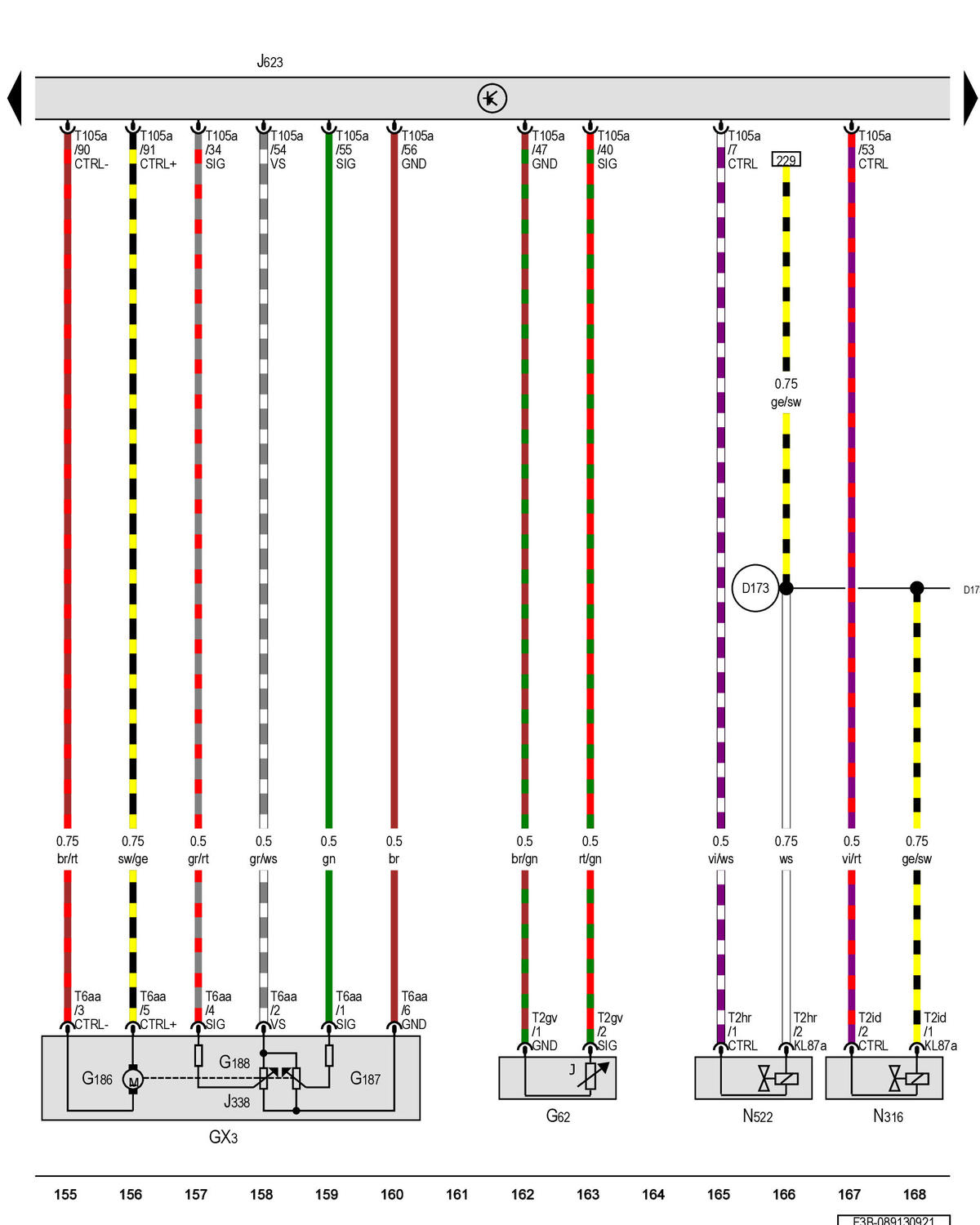

Throttle Valve Control Module, Engine Coolant Temperature Sensor, Engine/Motor Control Module, Intake Manifold Runner Control Valve, Piston Cooling Nozzle Control Valve

Courtesy of AUDI OF AMERICA, LLC

GX3

Throttle Valve Control Module Type:BT, Slpdok:, Aim:BTGX3

G62

Engine Coolant Temperature Sensor Type:BT, Slpdok:, Aim:BTG62

G186

EPC Throttle Drive

G187

EPC Throttle Drive Angle Sensor 1

G188

EPC Throttle Drive Angle Sensor 2

J338

Throttle Valve Control Module

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

N316

Intake Manifold Runner Control Valve Type:BT, Slpdok:, Aim:BTN316

N522

Piston Cooling Nozzle Control Valve Type:BT, Slpdok:, Aim:BTN522

T2gv

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2gv

T2hr

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2hr

T2id

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2id

T6aa

6-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT6aa

T105a

105-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT105a

D173

Connection 87 (in Engine Pre-Wiring Harness)
