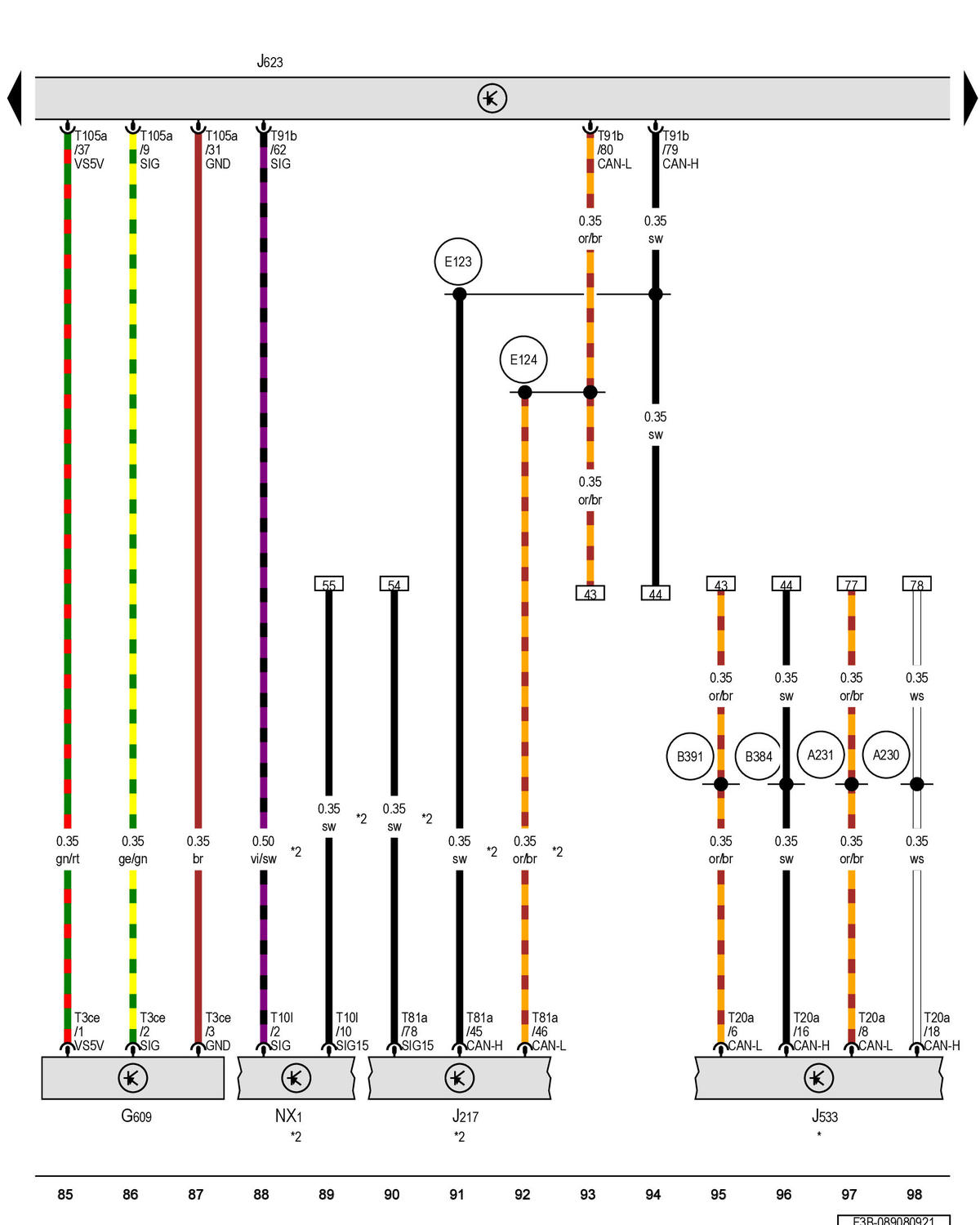

Secondary Air Injection Sensor 1, Transmission Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Transmission

Courtesy of AUDI OF AMERICA, LLC

G609

Secondary Air Injection Sensor 1 Type:BT, Slpdok:, Aim:BTG609

J217

Transmission Control Module Type:BT, Slpdok:, Aim:BTJ217

J533

Data Bus on Board Diagnostic Interface Type:BT, Slpdok:, Aim:BTJ533

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

NX1

Transmission Type:BT, Slpdok:, Aim:BTNX1

T3ce

3-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT3ce

T10l

10-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT10l

T20a

20-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT20a

T81a

81-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT81a

T91b

91-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT91b

T105a

105-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT105a

A230

Suspension/Instrument Cluster CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)

A231

Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

E123

CAN Bus Drive High Connection 1 (in Engine Wiring Harness)

E124

CAN Bus Drive Low Connection 1 (in Engine Wiring Harness)

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

For Vehicles with Automatic Transmission
