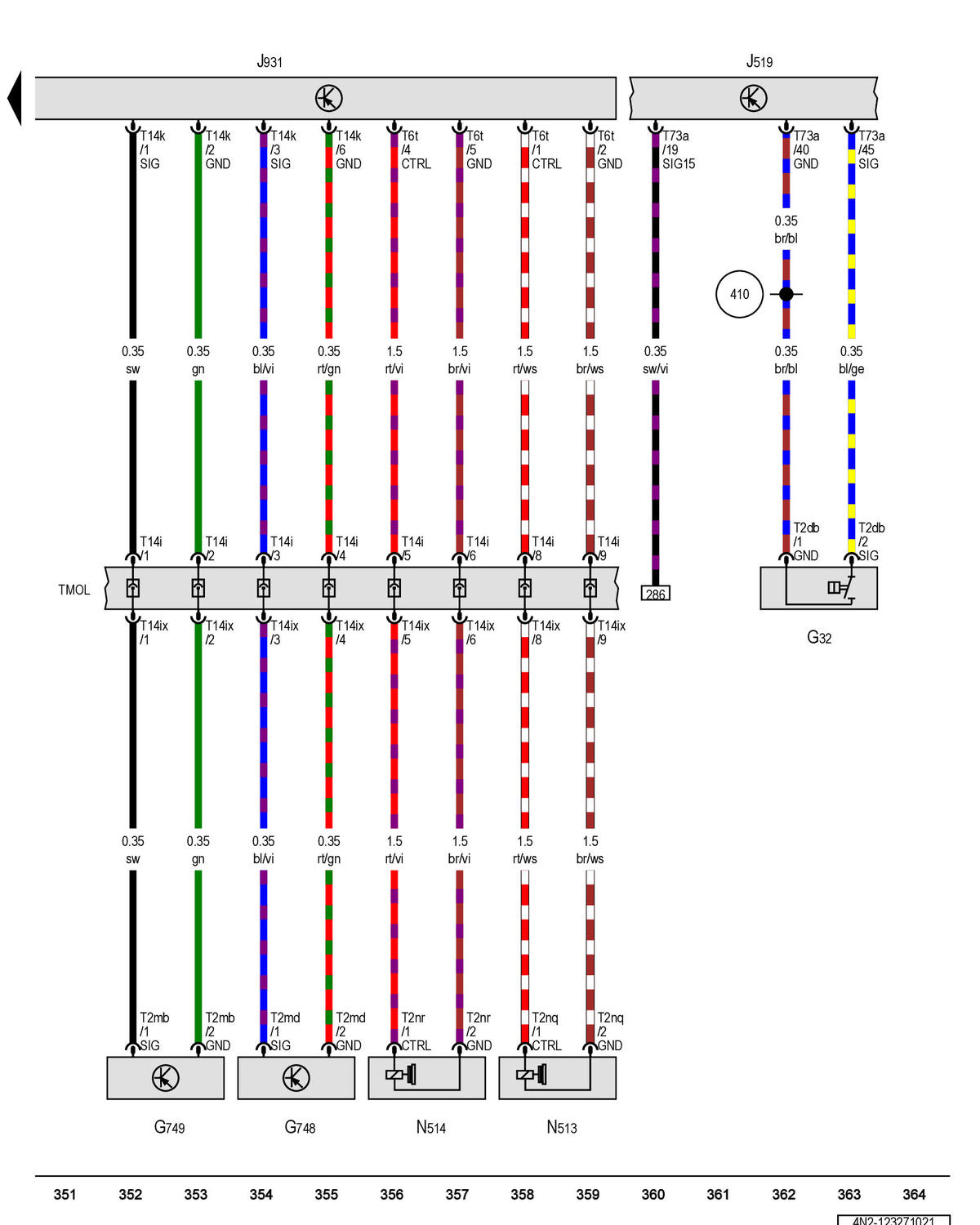

Engine Coolant Level Sensor, Assembly Mount Sensor 1, Assembly Mount Sensor 2, Vehicle Electrical System Control Module, Assembly Mount Control Module, Assembly Mount Actuator 1, Assembly Mount Actuator 2

Courtesy of AUDI OF AMERICA, LLC

G32

Engine Coolant Level Sensor

G748

Assembly Mount Sensor 1

G749

Assembly Mount Sensor 2

J519

Vehicle Electrical System Control Module

J931

Assembly Mount Control Module

N513

Assembly Mount Actuator 1

N514

Assembly Mount Actuator 2

T2db

2-Pin Connector, Black

T2mb

2-Pin Connector, Black

T2md

2-Pin Connector, Black

T2nq

2-Pin Connector, Black

T2nr

2-Pin Connector, Black

T6t

6-Pin Connector, Black

T14i

14-Pin Connector, Black

T14ix

14-Pin Connector, Black

T14k

14-Pin Connector, Black

T73a

73-Pin Connector, Black, Black

TMOL

Coupling Point on Engine, Top Left

410  Sensor Ground Connection 1 (in Main Wiring Harness)
