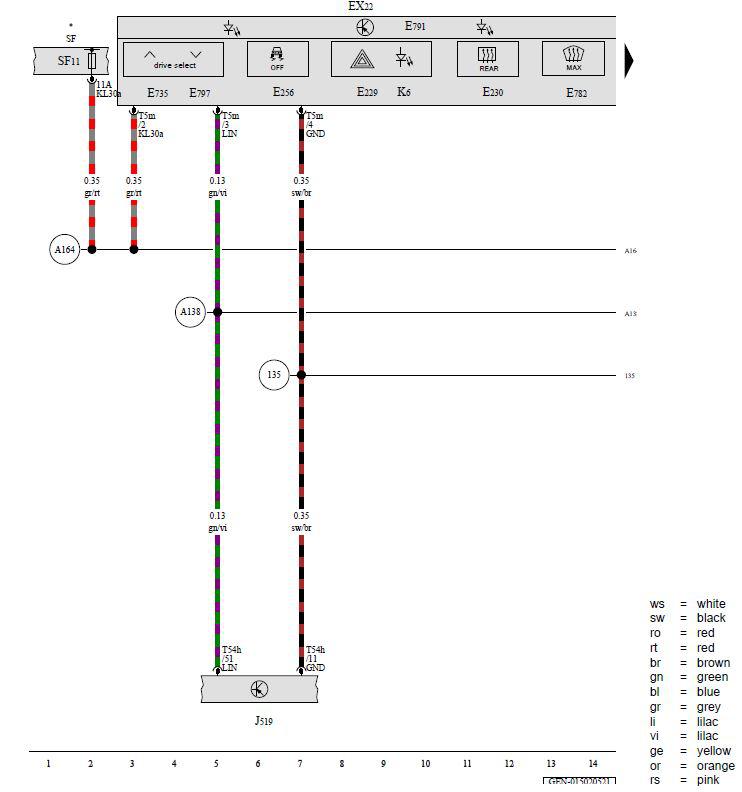

Center Instrument Panel Switch Module, Vehicle Electrical System Control Module
EX22 - Center Instrument Panel Switch Module
E229 - Emergency Flasher Button
E230 - Rear Window Defogger Button
E256 - ASR/ESP Button
E735 - Driving Profile Selection Button
E782 - Defrost Button
E791 - Control Unit 1 for Driving and Convenience Functions
E797 - Driving Profile Selection Button 2
J519 - Vehicle Electrical System Control Module
K6 - Emergency Flasher Indicator Lamp
SF - Fuse Panel F
SF11 - Fuse 11 (On Fuse Panel F)
T5m - 5-Pin Connector, Brown
T54h - 54-Pin Connector, Black
135 - Ground Connection 2 (in Instrument Panel Wiring Harness)
A138 - Connection 2 (in Instrument Panel Wiring Harness)
A164 - Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
* - Refer to Applicable Wiring Diagram for Fuse Positions
