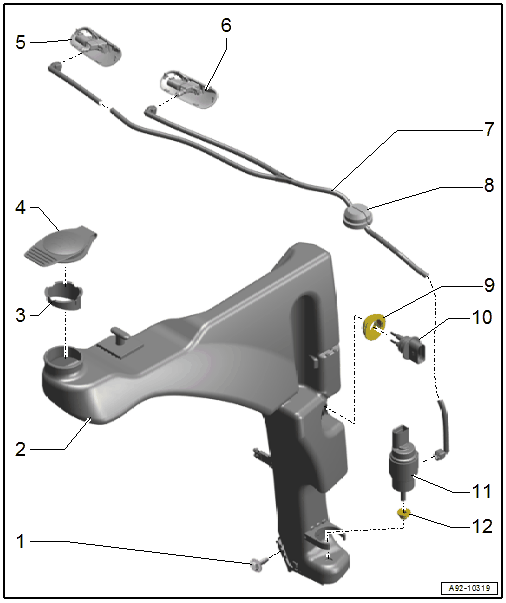

Overview - Windshield Washer System
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 8 Nm
- Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Screen
- Cap
- For the filler neck
- Right Spray Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
- Left Spray Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
- Washer Fluid Hose
- For the windshield washer system
- Grommet
- For the washer fluid hose in the hood
- Grommet
- Replace if damaged.
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged.
