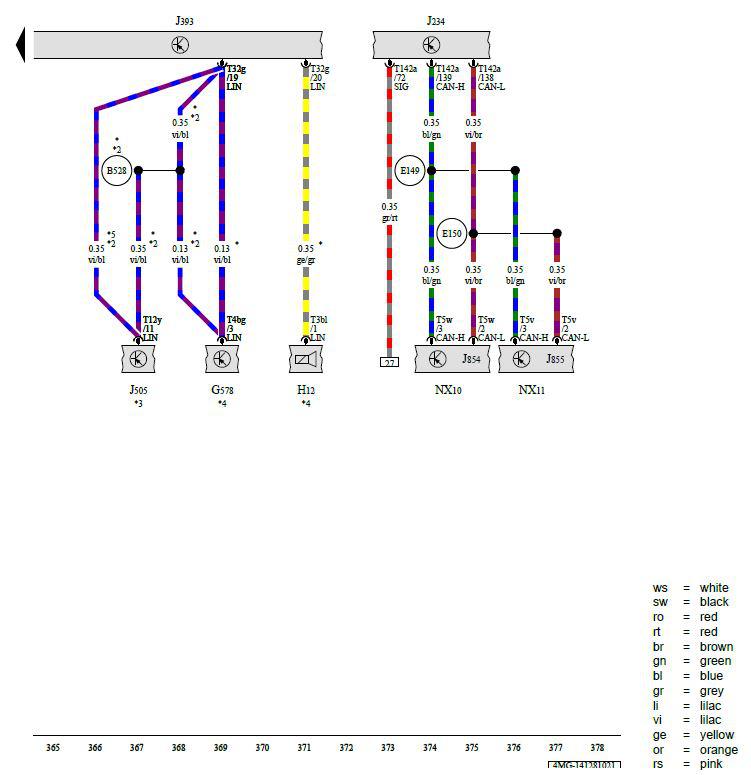

Anti-Theft Alarm System Sensor, Alarm Horn, Airbag Control Module, Comfort System Central Control Module, Windshield Defogger Control Module, Left Front Seat Belt, Right Front Seat Belt
G578 - Anti-Theft Alarm System Sensor
H12 - Alarm Horn
J234 - Airbag Control Module
J393 - Comfort System Central Control Module
J505 - Windshield Defogger Control Module
J854 - Left Front Seat Belt Tensioner Control Module
J855 - Right Front Seat Belt Tensioner Control Module
NX10 - Left Front Seat Belt
NX11 - Right Front Seat Belt
T3bl - 3-Pin Connector, Black
T4bg - 4-Pin Connector, Black
T5v - 5-Pin Connector, Naturally Cloudy
T5w - 5-Pin Connector, Naturally Cloudy
T12y - 12-Pin Connector, Black
T32g - 32-Pin Connector, Naturally Cloudy
T142a - 142-Pin Connector, Yellow
B528 - LIN Bus Connection 1 (in Main Wiring Harness)
E149 - Connection 1 (CAN Bus Airbag Control Module, High)
E150 - Connection 1 (CAN Bus Airbag Control Module, Low)
* - For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*2 - For Vehicles with Windshield Defogger
*3 - Refer to Applicable Windshield Defogger Wiring Diagram
*4 - Refer to Applicable Convenience System Wiring Diagram
*5 - For Vehicles Without Anti-Theft Alarm System
