Special Tools

Special tools and workshop equipment required

• Double Suction Lifter :VAG1344
  Fig 1: Double Suction Lifter

  Courtesy of AUDI OF AMERICA, LLC
• Bonded Window Tool Kit :VAG1351
  Fig 2: Bonded Window Tool Kit (VAG1351)

  Courtesy of AUDI OF AMERICA, LLC
• Bonded Window Tool Kit - Pull Handle :VAG1351/1
• Cutting Tool for Bonded Windows :VAS6452  or Window Removal Set :VAS861 001 A
  Fig 3: Cutting Tool For Bonded Windows (VAS6452)

  Courtesy of AUDI OF AMERICA, LLC
• Cutting Tool for Bonded Windows - Wire Reel :VAS6452/1
  Fig 4: Cutting Tool For Bonded Windows - Wire Reel (VAS6452/1)

  Courtesy of AUDI OF AMERICA, LLC
• Cutting Tool for Bonded Windows - Wire :VAS6452/2
• Window Cutter :VAG1561A
  Fig 5: Identifying Window Cutter VAG 1561A

  Courtesy of AUDI OF AMERICA, LLC
• Window Cutter - Blade, Offset :VAG1561/10
  Fig 6: Angled Blade V.A.G 1561/10

  Courtesy of AUDI OF AMERICA, LLC
• Window Cutter - Universal Blade (2 pc.) :VAG1561/11
  Fig 7: Identifying Universal Cutting Blade V.A.G 1561/11

  Courtesy of AUDI OF AMERICA, LLC
• Window Cutter - L Blade (2 pc.) :VAG1561/22
  Fig 8: Cutting Blade (L-Shaped, 25.4 mm) V.A.G 1561/22

  Courtesy of AUDI OF AMERICA, LLC
• Window Cutter - Scraper (2 pc.) :VAG1561/7+8
  Fig 9: Identifying Scraper (15+25 mm) V.A.G 1561/7+8

  Courtesy of AUDI OF AMERICA, LLC

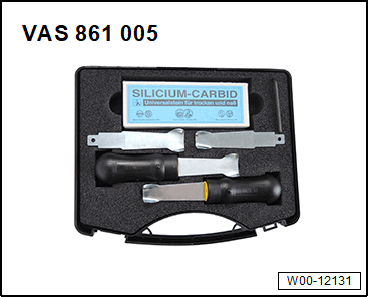

• Scraper Set :VAS861 005

  Courtesy of AUDI OF AMERICA, LLC

• Double Cartridge Adhesive Gun :VAS5237
  Fig 10: Double Cartridge Adhesive Gun (VAS5237)

  Courtesy of AUDI OF AMERICA, LLC
• Cartridge Gun :VAG1628
  Fig 11: Cartridge Gun (VAG1628)

  Courtesy of AUDI OF AMERICA, LLC
• Cartridge Heater :VAG1939A
  Fig 12: Cartridge Heater

  Courtesy of AUDI OF AMERICA, LLC
