Left And Right Effects Speaker -R209- / -R210-, Removing And Installing, 8RF: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

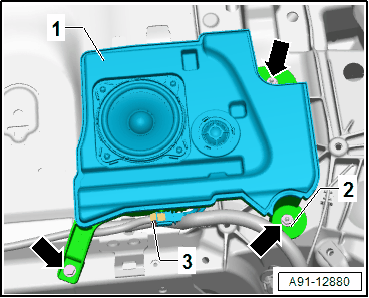

-- Release and disconnect the connector -3- from the Left Effects Speaker -R209- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- from the Left Effects Speaker -R209- -1-.

-- Remove the Left Effects Speaker -R209- -1- with the bracket -2-.
