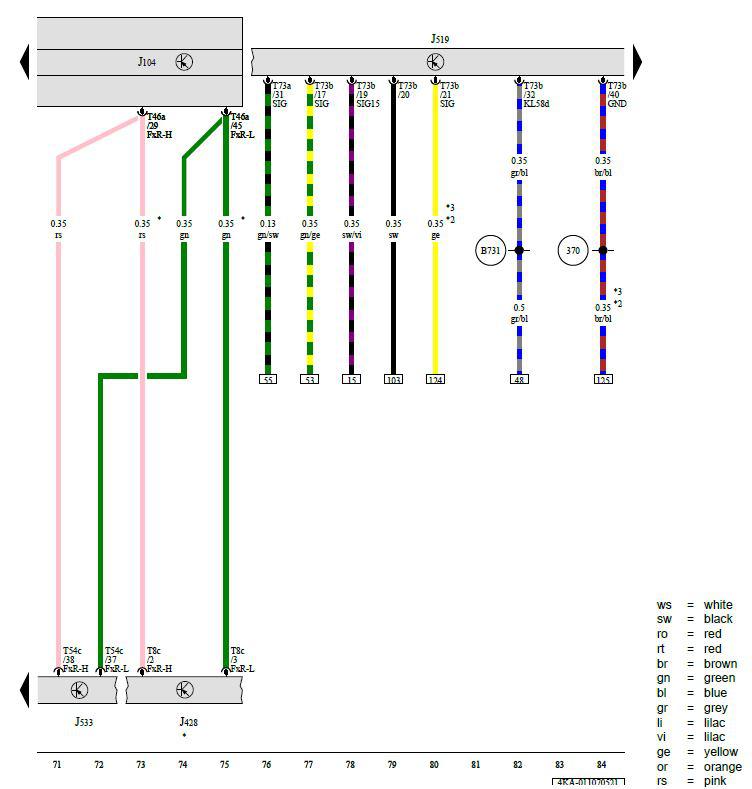

ABS Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface
J104 - ABS Control Module
J428 - Control Module for Adaptive Cruise Control
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
T8c - 8-Pin Connector, Black
T46a - 46-Pin Connector, Black
T54c - 54-Pin Connector, Black
T73a - 73-Pin Connector, Black, Naturally Cloudy
T73b - 73-Pin Connector, Black, Black
370 - Ground Connection 5 (in Main Wiring Harness)
B731 - Connection 58s (in Main Wiring Harness) 1
* - For Vehicles with Adaptive Cruise Control (ACC)
*2 - For Vehicles with Traffic Jam Pilot
*3 - For Vehicles with Hybrid Drive
