Left/Right Rear Midrange Speaker 2 -R341- / -R340-, Removing And Installing, 8RF: Removing
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the entire headliner and place it at the front on the instrument panel. Refer to HEADLINER, REMOVING AND INSTALLING .

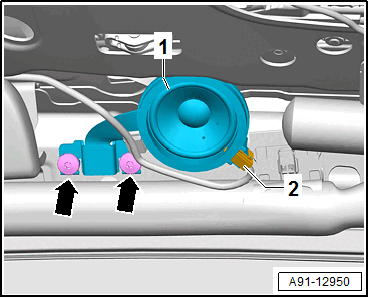

-- Release and disconnect the connector -2- from the Left Rear Midrange Speaker 2 -R341- -1-.
-- Remove the screws -arrows- from the Left Rear Midrange Speaker 2 -R341- -1-.
-- Remove the Left Rear Midrange Speaker 2 -R341- -1-.
