Left/Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
The Left Rear Treble Speaker -R14- is clipped into the door trim panel.

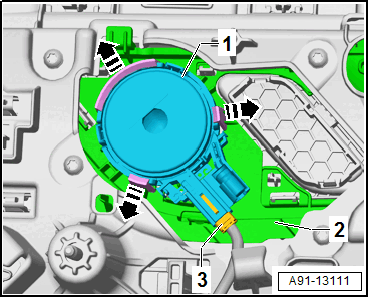

-- Release and disconnect the connector -3- from the Left Rear Treble Speaker -R14- -1-.
-- Press the tabs -arrows- until the Left Rear Treble Speaker -R14- -1- can be removed from the door trim panel -2-.
