Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

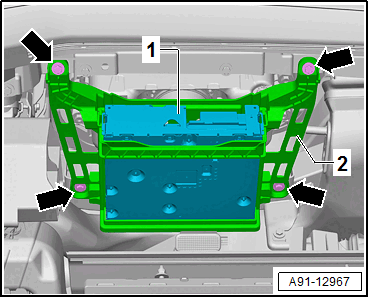

-- First insert the Information Electronics Control Module 1 -J794- into the bracket until it engages.
-- Connect all connectors.
-- Secure the bracket -2- with four screws -arrows-.
 Courtesy of AUDI OF AMERICA, LLC
|
