Close Range Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console support insert. Refer to OVERVIEW - CENTER CONSOLE .
The Close Range Communication Control Module 2 -J1170- is clipped into the center console.

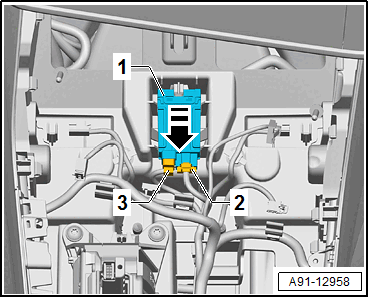

-- Remove the Close Range Communication Control Module 2 -J1170- -1- from the center console in the direction of the -arrow-.
-- Release and disconnect the connectors -2 and 3-.
