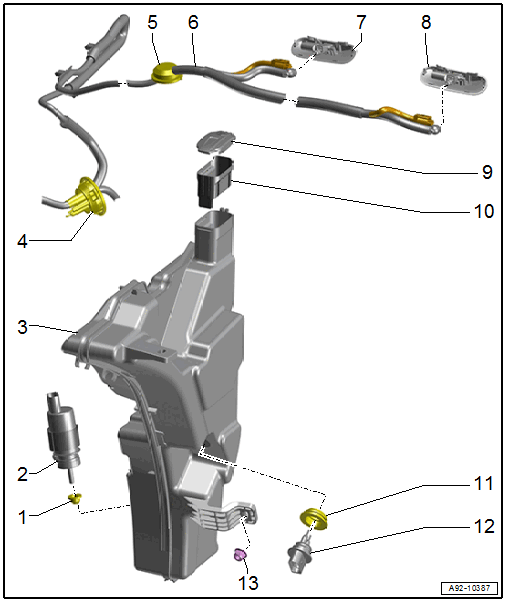

Overview - Windshield Washer System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5, 2022 Audi A5 Quattro, 2021 Audi S5, and 2021 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Replace if damaged
- Windshield Washer Pump -V5-
- For the front and rear window washer system
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Grommet
- For washer fluid hose/wiring harness in the body
- Grommet
- For the washer fluid hose in the front lid
- Washer Fluid Hose
- To the washer nozzles
- Right Washer Nozzle
- With Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Cap
- For the filler neck
- Screen
- Grommet
- Replace if damaged
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Quantity: 2
