Rear Peripheral Camera -R246-, REMOVING AND INSTALLING, COUPE/SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

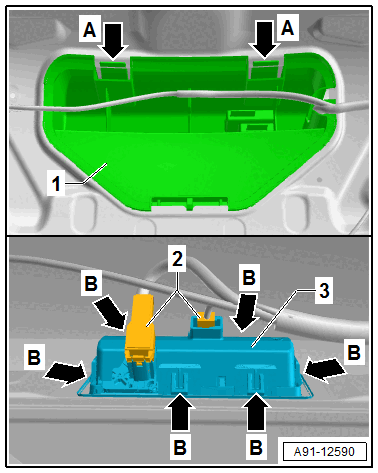

-- Release the retainers -arrows A-.
-- Remove the anti-theft protection -1- from the rear lid.
-- Release and disconnect the connectors -2-.
-- Release the catches -B arrows-.
-- Remove the handle button -3- from the rear lid.
