Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Release the retainers in direction of -arrows- and pull the vehicle electrical system control module -1- slightly downward.

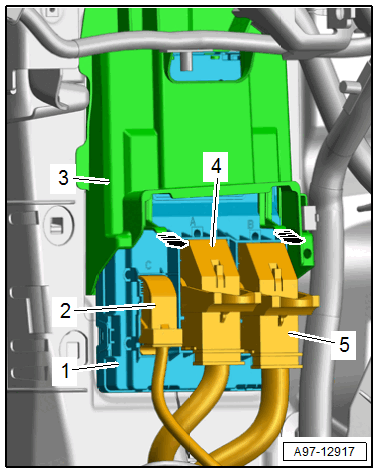

Fig 1: Vehicle Electrical System Control Module -J519-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2, 4 and 5-.

-- Remove the vehicle electrical system control module downward from the mount -3-.
