Overview - Assembly Mounts

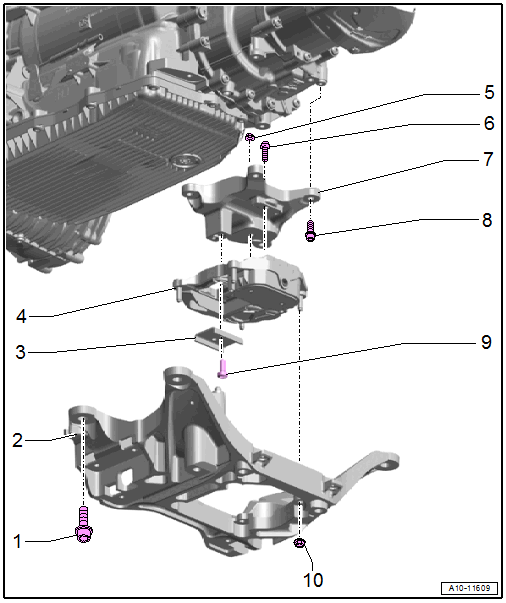

Fig 1: Exploded View Of Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 55 Nm
Tunnel Crossmember
- Removing and installing. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
Stop
- For the transmission mount
Transmission Mount
- Removing and installing. Refer to the appropriate Engine System article .
Nut
- 20 Nm
- Only remove if the transmission mount must be separated from the transmission support
Bolt
- 20 Nm
Transmission Support
- Removing and Installing
Bolt
- 40 Nm
Bolt
- 20 Nm +90°
- Replace after removing
- Only remove if the transmission mount must be separated from the transmission support
Nut
- 20 Nm
