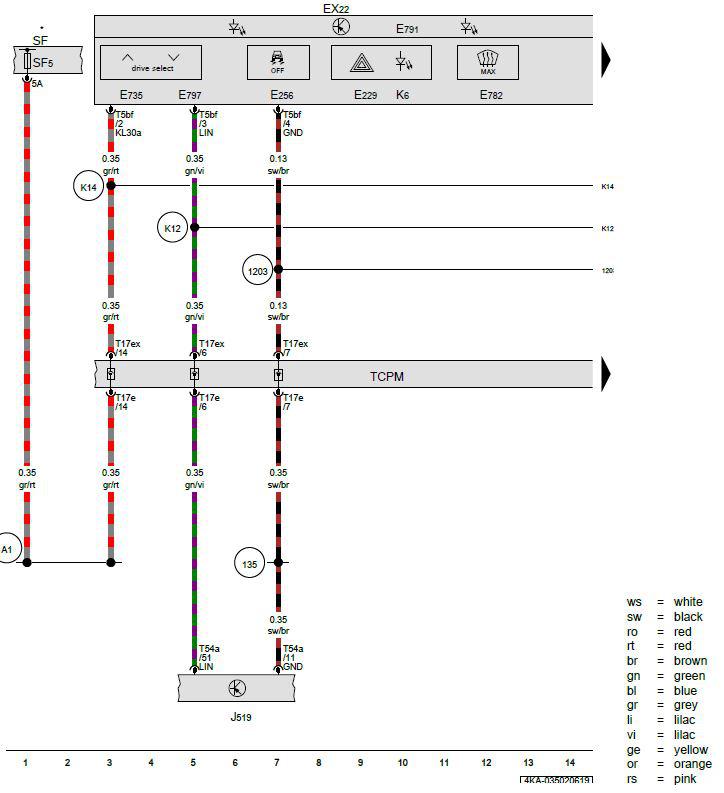

Switch Module in Instrument Panel, Center, Control Unit 1 for Driving and Convenience Functions, Vehicle Electrical System Control Module
EX22 - Switch Module in Instrument Panel, Center
E229 - Emergency Flasher Button
E256 - ASR/ESP Button
E735 - Driving Profile Selection Button
E782 - Defrost Button
E791 - Control Unit 1 for Driving and Convenience Functions
E797 - Driving Profile Selection Button 2
J519 - Vehicle Electrical System Control Module
K6 - Emergency Flasher Indicator Lamp
SF - Fuse Panel F
SF5 - Fuse 5 (On Fuse Panel F)
T5bf - 5-Pin Connector, Brown
T17e - 17-Pin Connector, Black
T17ex - 17-Pin Connector, Black
T54a - 54-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
135 - Ground Connection 2 (in Instrument Panel Wiring Harness)
1203 - Ground Connection (in Center Console Wiring Harness)
A1 - Positive Connection 30a (in Instrument Panel Wiring Harness)
K12 - LIN Bus Connection (in Center Console Wiring Harness)
K14 - Connection (30) (in Center Console Wiring Harness)
* - Refer to Applicable Wiring Diagram for Fuse Positions
