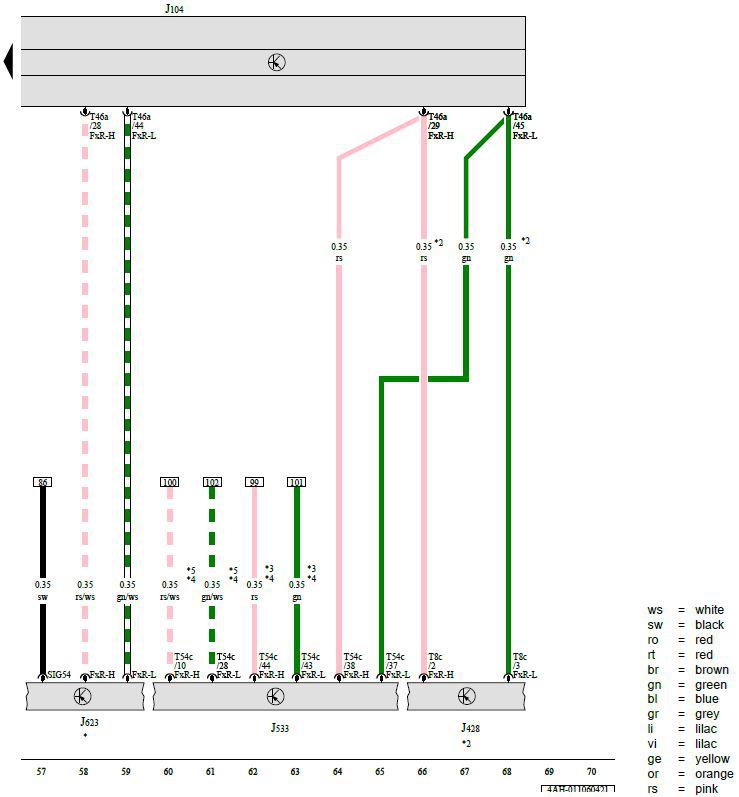

ABS Control Module, Data Bus on Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J428 -  Control Module for Adaptive Cruise Control

J533 -  Data Bus on Board Diagnostic Interface

J623 -  Engine/Motor Control Module

T8c -  8-Pin Connector, Black

T46a -  46-Pin Connector, Black

T54c -  54-Pin Connector, Black

* -  Refer to Applicable Engine Wiring Diagram

*2 -  For Vehicles with Adaptive Cruise Control (ACC)

*3 -  For Vehicles with Traffic Jam Pilot

*4 -  For Vehicles with Hybrid Drive

*5 -  For Vehicles Without Traffic Jam Pilot
