Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, COUPE/SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the luggage compartment floor covering.

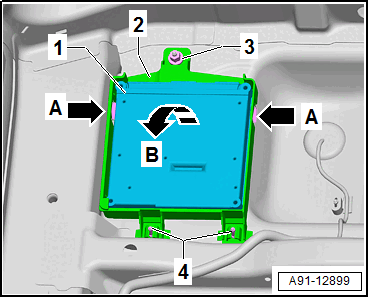

The Control Module for Emergency Call Module and Communication Unit -J949- -1- is engaged in the bracket -2-.
-- Press the retainers -A arrows- and pry out the Control Module for Emergency Call Module and Communication Unit -J949- -1- -arrow B-.
-- Release and disconnect the connectors from the Control Module for Emergency Call Module and Communication Unit -J949- -1-.
Bracket, Removing
-- Remove the nut -3- and remove the bracket -2- from the threaded pins -3 and 4-.
-- Audi A5 Sportback g-tron: remove the nuts -3 and 4- and remove the bracket -2- from the threaded pins -3 and 4-.
