Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, CABRIOLET: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

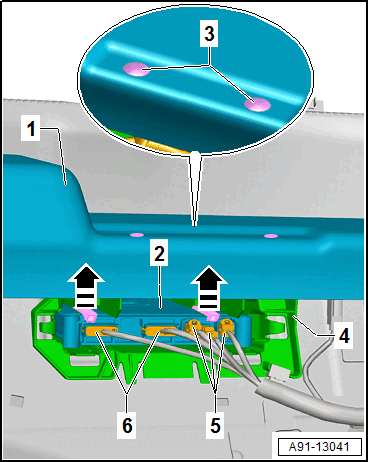

-- Remove the expanding clips -3- using the Pliers: T40172C .
-- Lift the front of the luggage compartment floor -1- near the Control Module for Emergency Call Module and Communication Unit -J949-.
-- Release and disconnect the connectors -6- and antenna wires -5-.
-- Release the retainers -arrows-.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -2- from the mount -4-.
