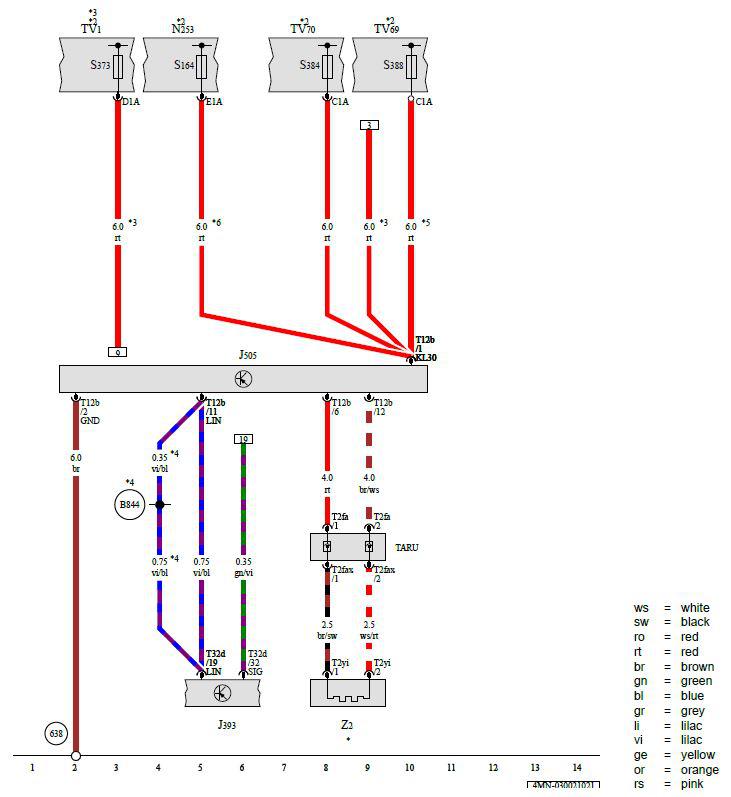

Comfort System Central Control Module, Windshield Defogger Control Module, Battery Interrupt Igniter, Wire Junction, Wire Junction 3, Windshield Defogger
J393 - Comfort System Central Control Module
J505 - Windshield Defogger Control Module
N253 - Battery Interrupt Igniter
S164 - Fuse 3 (Terminal 30) on Battery Fuse Panel
S373 - Wire Junction Fuse 3
S384 - Wire Junction 3 Fuse 2
S388 - Wire Junction 2 Fuse 2
T2fa - 2-Pin Connector, Black
T2fax - 2-Pin Connector, Black
T2yi - 2-Pin Connector, Black
T12b - 12-Pin Connector, Black
T32d - 32-Pin Connector, Naturally Cloudy, Black
TARU - Coupling Point on Right A-Pillar, Bottom
TV1 - Wire Junction
TV69 - Wire Junction 2
TV70 - Wire Junction 3
Z2 - Windshield Defogger
638 - Ground Connection on Right A-Pillar
B844 - LIN Bus Connection 10 (in Main Wiring Harness)
* - Pre-Wired Component
*2 - Refer to Applicable Wiring Diagram for Fuse Positions
*3 - For Vehicles with 48 V System
*4 - For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
*5 - Depending on Equipment
*6 - For Vehicles with Hybrid Drive
