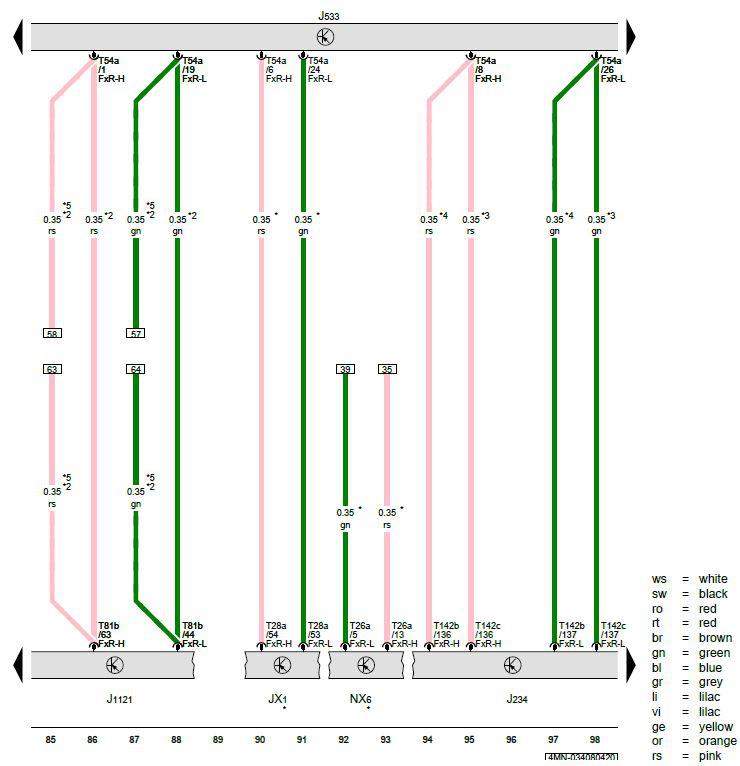

Electric Drive Power and Control Electronics, Airbag Control Module, Data Bus on Board Diagnostic Interface, Driver Assistance Systems Control Module, Brake Booster

Courtesy of AUDI OF AMERICA, LLC

JX1 -  Electric Drive Power and Control Electronics

J234 -  Airbag Control Module

J533 -  Data Bus on Board Diagnostic Interface

J1121 -  Driver Assistance Systems Control Module

NX6 -  Brake Booster

T26a -  26-Pin Connector, Black

T28a -  28-Pin Connector, Black

T54a -  54-Pin Connector, Black

T81b -  81-Pin Connector, Black

T142b -  142-Pin Connector, Yellow

T142c -  142-Pin Connector, Yellow

* -  For Vehicles with Hybrid Drive

*2 -  For Driver Assistance System

*3 -  For USA Only

*4 -  Not for USA

*5 -  Depending on Equipment
