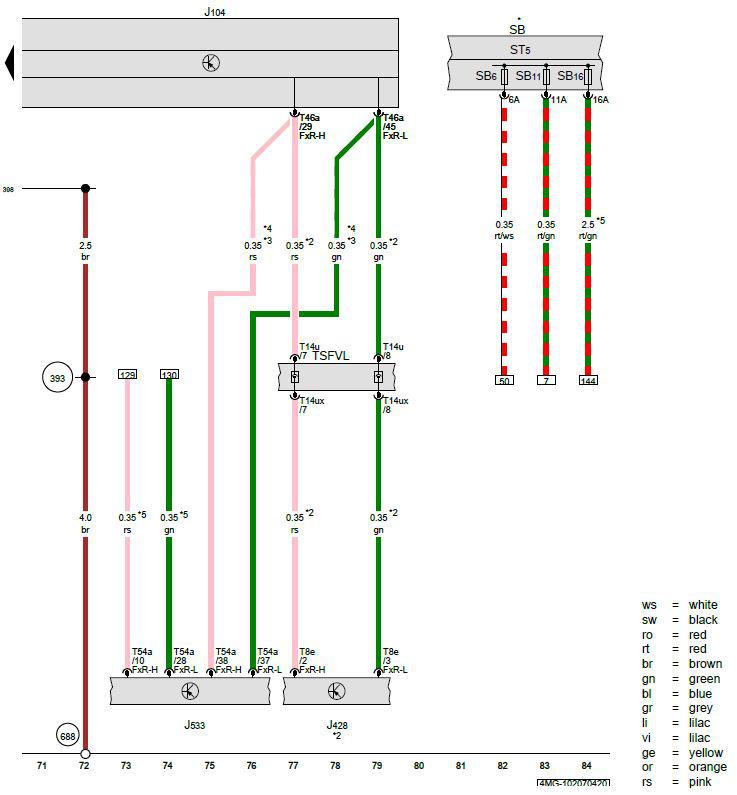

ABS Control Module, Control Module for Adaptive Cruise Control, Data Bus on Board Diagnostic Interface
J104 - ABS Control Module
J428 - Control Module for Adaptive Cruise Control
J533 - Data Bus on Board Diagnostic Interface
SB - Fuse Panel B
ST5 - Fuse Panel 5
SB6 - Fuse 6 (On Fuse Panel B)
SB11 - Fuse 11 (On Fuse Panel B)
SB16 - Fuse 16 (On Fuse Panel B)
T8e - 8-Pin Connector, Black
T14u - 14-Pin Connector, Brown
T14ux - 14-Pin Connector, Brown
T46a - 46-Pin Connector, Black
T54a - 54-Pin Connector, Black
TSFVL - Coupling Point on Left Front Bumper
393 - Ground Connection 28 (in Main Wiring Harness)
398 - Ground Connection 33 (in Main Wiring Harness)
688 - Ground Connection 2 on Center Tunnel
* - Refer to Applicable Wiring Diagram for Fuse Positions
*2 - For Vehicles with Adaptive Cruise Control (ACC)
*3 - For Vehicles Without Adaptive Cruise Control (ACC)
*4 - Optional Equipment
*5 - For Vehicles with Hybrid Drive
