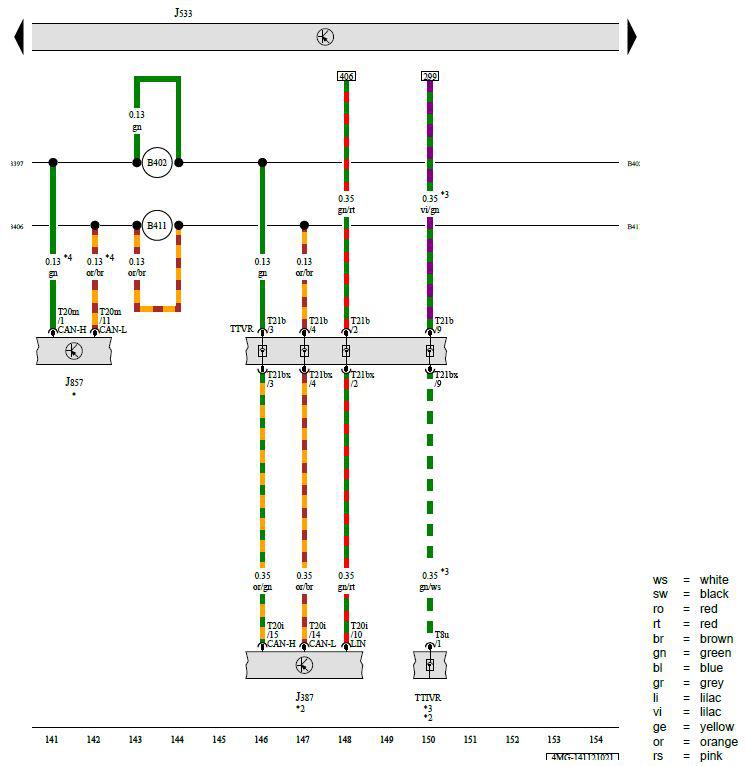

Front Passenger Door Control Module, Data Bus on Board Diagnostic Interface, Third Row Seat Adjustment Control Module
J387 - Front Passenger Door Control Module
J533 - Data Bus on Board Diagnostic Interface
J857 - Third Row Seat Adjustment Control Module
T8u - 8-Pin Connector, Black
T20i - 20-Pin Connector, White
T20m - 20-Pin Connector, Brown
T21b - 21-Pin Connector, Black
T21bx - 21-Pin Connector, Black
TTIVR - Coupling Point in Right Front Door
TTVR - Right Front Door Coupling Point
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B402 - Comfort System CAN Bus High Connection 6 (in Main Wiring Harness)
B406 - Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B411 - Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)
* - Refer to Applicable Seat Adjustment Wiring Diagram
*2 - Refer to Applicable Front Passenger Door Control Module Wiring Diagram
*3 - For Vehicles with Ambient Lighting
*4 - Rear Power Seats
