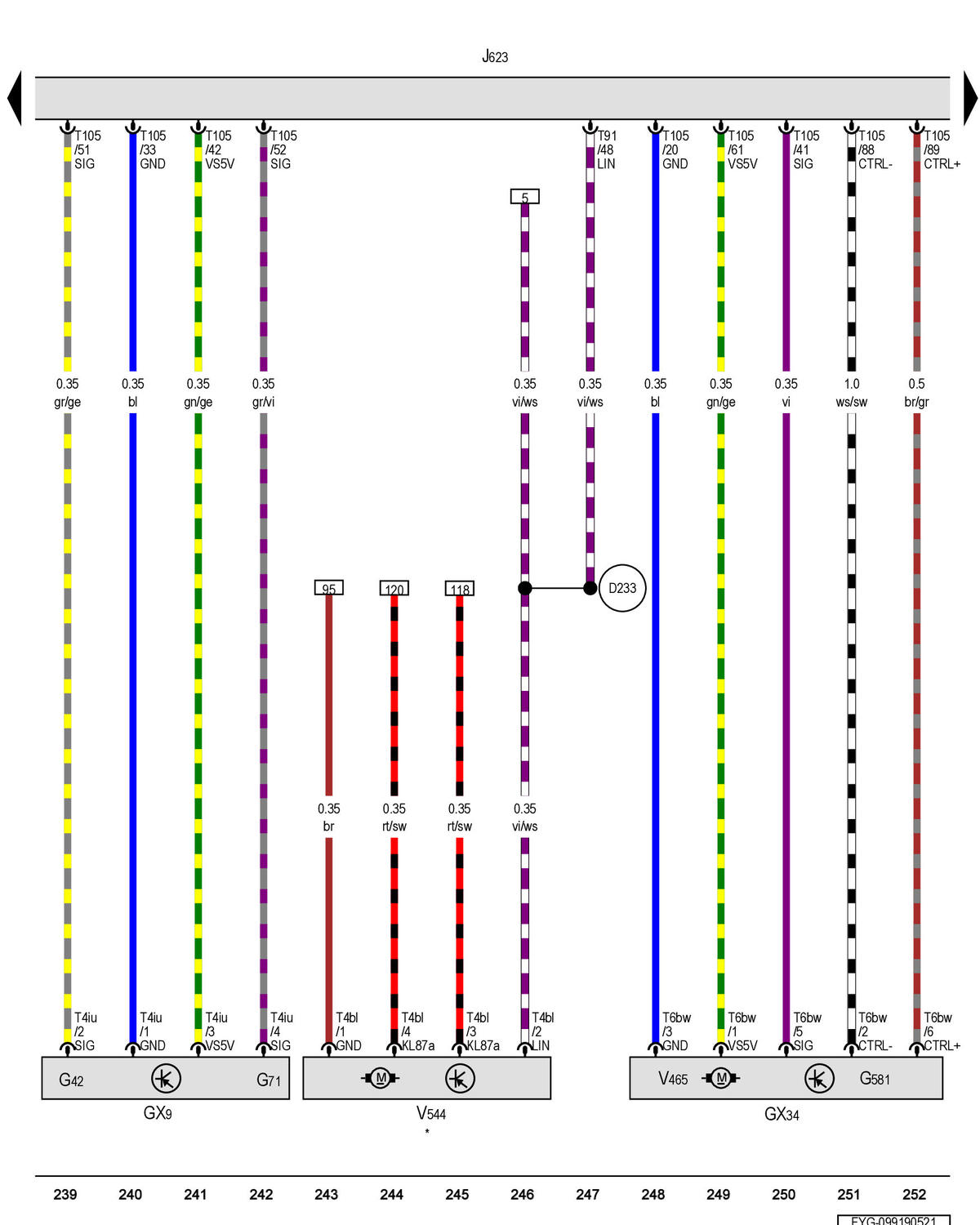

Intake Manifold Sensor, Charge Air Pressure Control Module, Engine/Motor Control Module, Radiator Shutter Motor
GX34 - Charge Air Pressure Control Module
G42 - Intake Air Temperature Sensor
G71 - Manifold Absolute Pressure Sensor
G581 - Charge Air Pressure Actuator Position Sensor
J623 - Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front
T4bl - 4-Pin Connector, Black
T4iu - 4-Pin Connector, Black
T6bw - 6-Pin Connector, Black
T91 - 91-Pin Connector, Black
T105 - 105-Pin Connector, Black
V465 - Charge Air Pressure Actuator
V544 - Radiator Shutter Motor
D233 - Connection 2 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)
* - Pre-Wired Component
