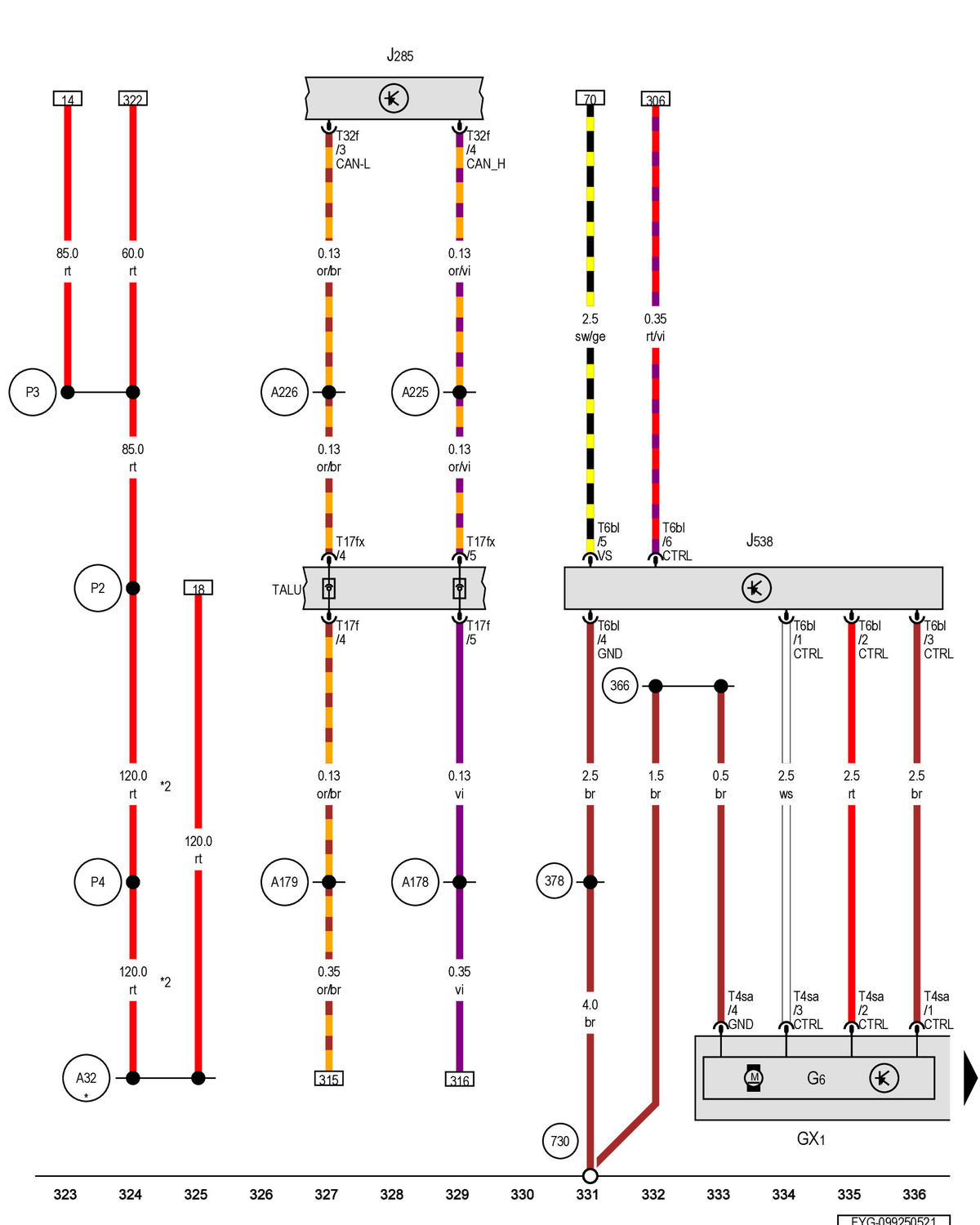

Fuel Delivery Unit, Instrument Cluster Control Module, Fuel Pump Control Module
GX1 - Fuel Delivery Unit
G6 - Transfer Fuel Pump
J285 - Instrument Cluster Control Module
J538 - Fuel Pump Control Module
T4sa - 4-Pin Connector, Black
T6bl - 6-Pin Connector, Black
T17f - 17-Pin Connector, Red
T17fx - 17-Pin Connector, Red
T32f - 32-Pin Connector, Gray
TALU - Coupling Point on Left A-Pillar, Bottom
366 - Ground Connection 1 (in Main Wiring Harness)
378 - Ground Connection 13 (in Main Wiring Harness)
730 - Ground Connection 1 on Right Rear Wheel Housing
A32 - Positive Connection (30) (in Instrument Panel Wiring Harness)
A178 - Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179 - Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225 - Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226 - Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
P2 - Positive Connection (30) (in Battery Wiring Harness)
P3 - Positive Connection (30 (in Auxiliary Battery Wiring Harness)
P4 - Positive Connection 2 (30) (in Battery Wiring Harness)
* - For Vehicles with Auxiliary Heater
*2 - Diameter Depends on Equipment
