Left And Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing

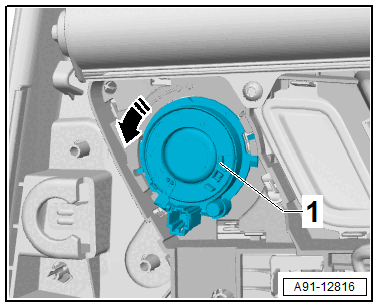

GWWA91-12816Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear door trim panel. Refer to OVERVIEW - REAR DOOR TRIM PANEL .

-- Turn the Left Rear Treble Speaker -R14- -1- in the direction of -arrow- until it can be removed from the door trim panel.
