Overview - Final Drive: Notes

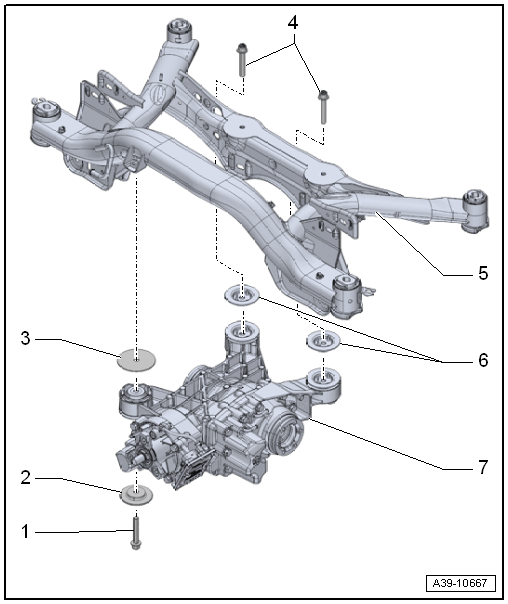

Fig 1: Exploded View Of Final Drive

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 60 Nm +180°
- Replace after removing
- Quantity: 3
Buffer

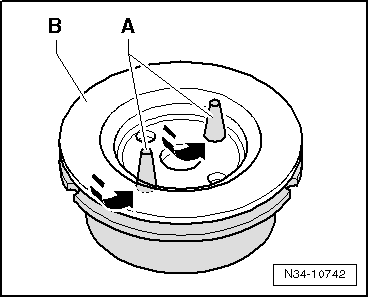

- Place on the bonded rubber bushing. Refer to Figure.
Washer
- Installation position: the bevel (smaller diameter) faces the subframe
Bolts
- 60 Nm +180°
- Replace after removing
Rear Subframe
Buffers
- Place on the bonded rubber bushing. Refer to Figure.
Rear Final Drive
- Removing and installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
- Bonded rubber bushing, removing and installing. Refer to OVERVIEW - SUBFRAME MOUNT .
- Depending on the version with balance weight. Refer to Balance Weight .
