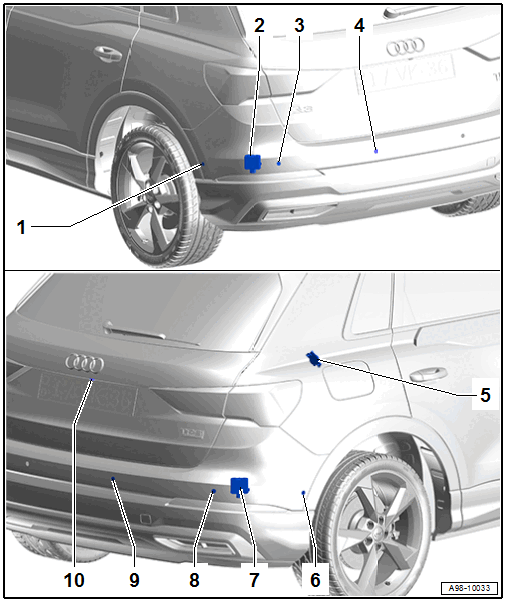

Component Location Overview - Sensors And Control Modules In Rear Section Of Vehicle
- 1 -
Left Rear Parallel Parking Assistance Sensor -G716-
- Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to Left Rear Parallel Parking Assistance Sensor -G716- /Right Rear Parallel Parking Assistance Sensor -G717-, REMOVING AND INSTALLING .
- 2 -
Lane Change Assistance Control Module 2 -J770-
- In the bumper cover
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and Installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- 3 -
Left Rear Parking Aid Sensor -G203-
- Parking Aid/Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- 4 -
Left Rear Center Parking Aid Sensor -G204-
- Parking Aid/Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- 5 -
Rear Parking Aid Warning Buzzer -H15-
- Parking Aid. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Discontinued from 11/26/2018 on parking aid versions 7X2 and 7X5, only the Front Parking Aid Warning Buzzer -H22- is installed.
- Removing and Installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .
- 6 -
Right Rear Parallel Parking Assistance Sensor -G717-
- Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to Left Rear Parallel Parking Assistance Sensor -G716- /Right Rear Parallel Parking Assistance Sensor -G717-, REMOVING AND INSTALLING .
- 7 -
Lane Change Assistance Control Module -J769-
- In the bumper cover
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and Installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- 8 -
Right Rear Parking Aid Sensor -G206-
- Parking Aid/Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING .
- 9 -
Right Rear Center Parking Aid Sensor -G205-
- Parking Aid/Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to Left Rear Parallel Parking Assistance Sensor -G716- /Right Rear Parallel Parking Assistance Sensor -G717-, REMOVING AND INSTALLING .
- 10 -
Rearview Camera -R189-
- Vehicles with rearview camera system (PR number KA2)
- With Rearview Camera System Control Module -J772-
- Rearview camera system. Refer to REARVIEW CAMERA SYSTEM .
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- 10 -
Rear Peripheral Camera -R246-
- Vehicles with peripheral camera system (PR number KA6)
- Peripheral Camera. Refer to ENVIRONMENTAL CAMERA .
- Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
