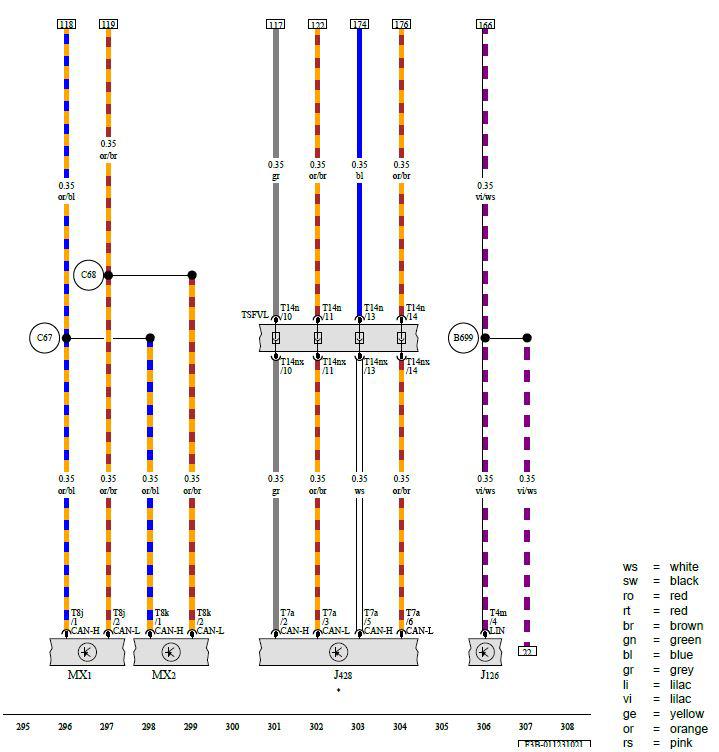

Fresh Air Blower Control Module, Control Module for Adaptive Cruise Control, Left Front Headlamp, Right Front Headlamp
J126 - Fresh Air Blower Control Module
J428 - Control Module for Adaptive Cruise Control
MX1 - Left Front Headlamp
MX2 - Right Front Headlamp
T4m - 4-Pin Connector, Black
T7a - 7-Pin Connector, Black
T8j - 8-Pin Connector, Black
T8k - 8-Pin Connector, Black
T14n - 14-Pin Connector, Black
T14nx - 14-Pin Connector, Black
TSFVL - Coupling Point on Left Front Bumper
B699 - LIN Bus Connection 4 (in Main Wiring Harness)
C67 - CAN Bus High Connection (in Headlamp Wiring Harness)
C68 - CAN Bus Low Connection (in Headlamp Wiring Harness)
* - For Vehicles with Adaptive Cruise Control (ACC)
