Home >> Audi >> 2021 >> A8 e Quattro >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagram [CZSE] >> Wiring Diagram >> Fuel Delivery Unit, Fuel Tank Pressure Sensor, Comfort System Central Control Module, Engine/Motor Control Module >> Notes

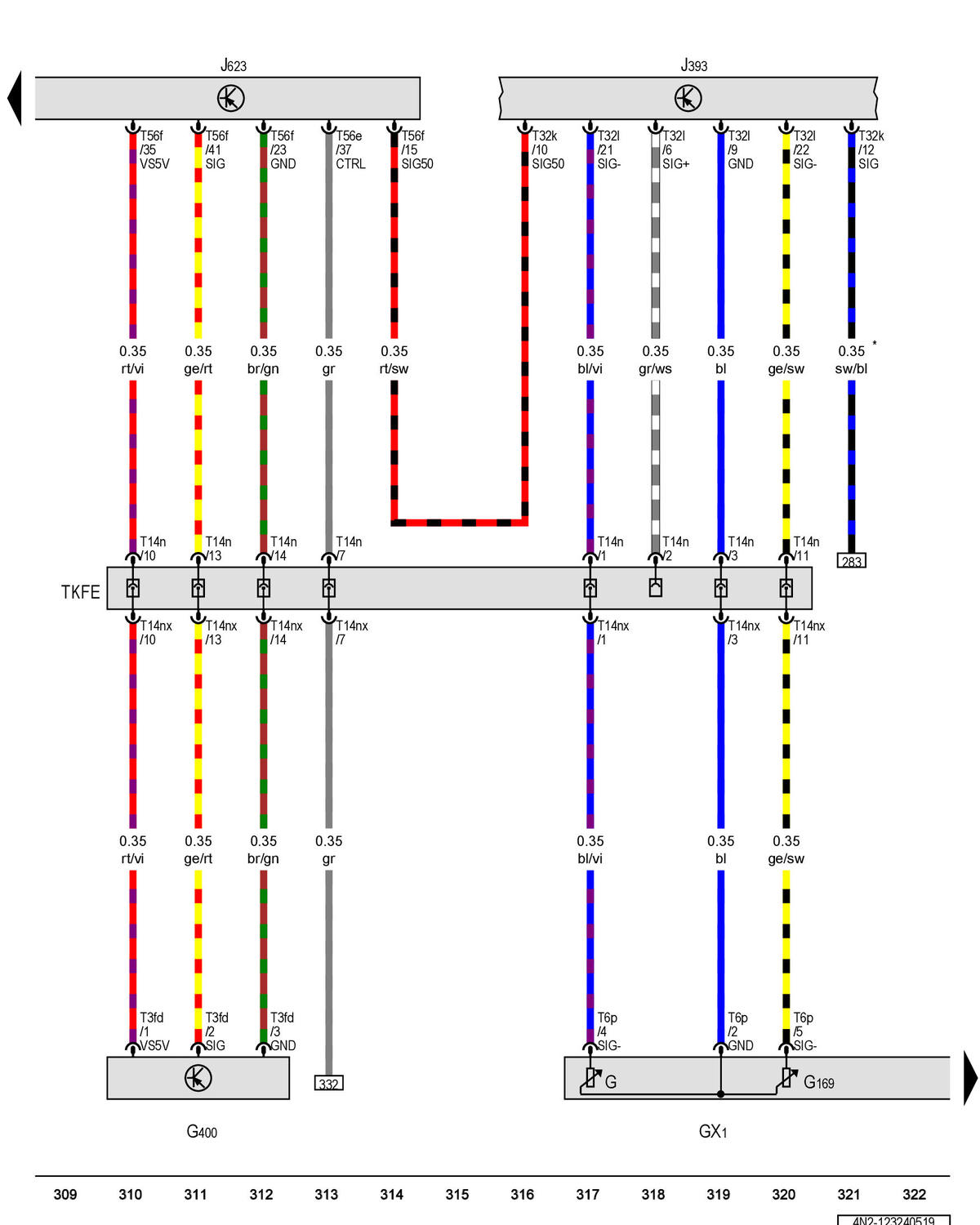

Fuel Delivery Unit, Fuel Tank Pressure Sensor, Comfort System Central Control Module, Engine/Motor Control Module: Notes

GWW4N2-123240519

Courtesy of AUDI OF AMERICA, LLC
